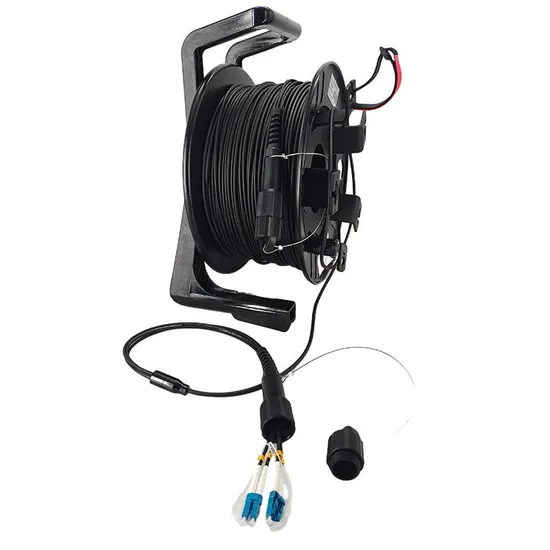

Plastic Cable Reel of Portable Mobile for Tactical Armored Fiber Optical Cable

Product Description

Plastic Cable Reel of Portable Mobile For Tactical Armored Fiber Optical Cable
Product Description The mobile per-terminated armoured cable reel is developed for temporary field deployment where fiber connections are required. It comes in a portable cable reel for ease of transportation and deployment. The armoured cable is flexible and is able to withstand multiple usages without kinks. One end of the cable is fixed to the reel while the other end is coiled freely for patching to the equipments. Generally these will be customized base on user's requirement so there are options of various cable and connector type with any cable length which then will determine the size of the reel.
Our mainly products are MPO/MTP Fiber Optic Patch Cord,Outdoor Fiber Optic Patch Cord,Optical Fiber Cable,Fiber Optic Adapter,Fiber Optic Attenuator,Fiber Optic Cable Reel,Fiber Optic Cable Drum,Fiber Optic Media Converter and other related fiber optic products.
Product Parameters

Model#	PCD-310
Size	292*240.5*391.7mm
Main reel's diameter	φ312mm
Aixs's diameter	φ176mm
Main reel's width	135mm
Packing size	365*295*425mm(carton box)
Gross weight	3.3KG
Net weight	1.8KG
Cable's OD	3.0mm	4.0mm	5.0mm	6.0mm	7.0mm	8.0mm	9.0mm	10.0mm
Capacity	628M	350M	226M	157M	115M	88M	70M	57m

Product Features:
Used in 3G/4G/5G wireless base station horizontal and vertical cabling
1.Good mechanical and environmental characteristics;
2.Flame retardant characteristics meet the requirements of relevant standards;
3.The mechanical characteristics of jacket meet the requirements of relevant standards;
4.Soft,flexible,water blocked,UV resistant,easy to lay and splice,and with big capacity data transmission;
5.Meet various requirements of market and clients Product Application 1.Communication system
2.Passive optical networks (PON)
3.Coal,oil,natural gas,geological exploration
4.Broadcast television,temporary communication and so on.
Design for Distributing and Retrieving in Harsh Environment
Strong ABS and PC materials make the cord reel suitable for crucial and harsh situations.
Related Products
Company Profile Why cooperate with GAOFU?
Experiences: More than 10 years professional experiences in fiber optic patch cord industry.
Product serialization: form extensible product series that covers the market.
Flexibility: The modular design support high scalability and a flexible combination and collocation. Fast delivery.
Practicality: Close to customer's requirement and reduce the operating costs.
Adaptability: Customer-oriented, providing highly adaptable customized development solutions to meet customer's specific applications.
Market foresight: Closely link to the upstream and downstream of the industry chain, follow up and master the newest technology and development trend, provide the most competitive products and solutions.
Certifications
Packaging & Shipping
FAQ Q1. What's the warranty of GAOFU fiber optic patch cord?
We can ensure lifetime warranty as our fiber optic cable is UL approved and all our fiber optic patch cords are 100% testing passed.
Q2. Can we print our logo on the fiber cable jacket?
Yes, of course. You can decide the print on the fiber cable jacket. MOQ is 1KM when you want to add your logo. NO MOQ when printing is neutral.

---
