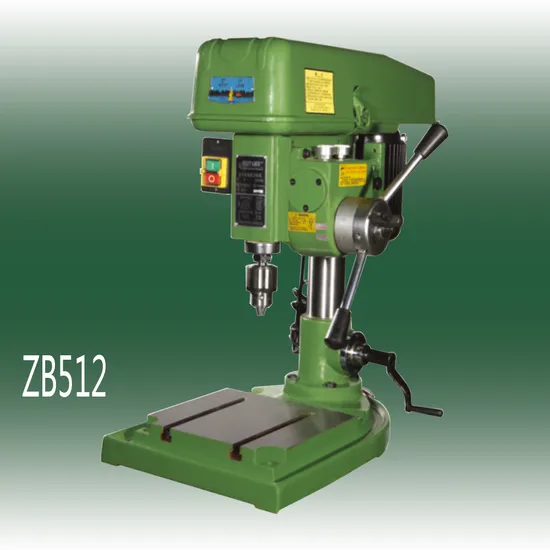

High Speed Automatic Feed Drilling Machine Zb512 Table Precision Drill Machine Maximum Diameter 12.7 mm

US$975.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZB512
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
550W
Max Drilling Capacity
12.7 mm
Transport Package
Wooden Case
Specification
80x50x76cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300

Product Description

Model JZB-16/JZB-25(A) JZB-25B/JZB-25C
Max Drilling capacity 16/25mm 25mm
Diameter of column 85/102mm 102mm
Spindle travel 100/130mm 130mm
Distance spindle axis to column surface 180/230mm 230mm
Max.distance spinde nose to worktable 425/750mm 740mm/-
Maxdistance spindle nose to base 610/990mm 1050/700mm
Spindle taper MT.2/MT.3 MT.3
Spindle speeds range 290-2000rpm/230-2160rpm 230-2160rpm
Spindle speeds 6 6
Spindle power feeds 0.1.0.14,0.17.0.25/0.1.0.16.0.25mm/r 0.1.0.16.0.25mm/r
Dimension of worktable surface 270x280mm/340x360(420mm) 390x470mm/-
Dimension of base worktable surface 245x245mm/260x260mm 325x275mm
Overall height 1050/1560mm 1640mm
Motor 750W/1500W 1500W
G.W/N.W. 140/125kg,215/188kg 298/270kg,245/230
Ship measurement 115x78x45cm 169x90x49cm 128x81x46cm 177x91x55cm

Model ZB512 ZB4020
Max.Drillingcapacity 12.7mm 20mm
Diameter of column 70mm 85mm
Spindle travel 80mm 125mm/75mm
Distance spindie axis to column surface 193mm 240mm
Max.distance spindle nose to worktable
Max.distance spindle nose to base 356mm 480mm
Spindle taper B16 TM.2
Spindle speedsrange 480,800,1400,2200r/min 370,610,1000,2000r/min
Spindle speeds 4 4
Spindle power feeds 0.06,0.14/mm/r 0.10,0.18/mm/r
Dimension of base worktable surface 280x260mm 315x335mm
Overall height 666mm 772mm
Motor 550W 1100W
G.W./N.W. 105/90kg 160/130kg
Ship measurement 80x50x76cm
