CNC Lathe Machine Price Cak6165 Wlloy Wheel Repair

Product Description

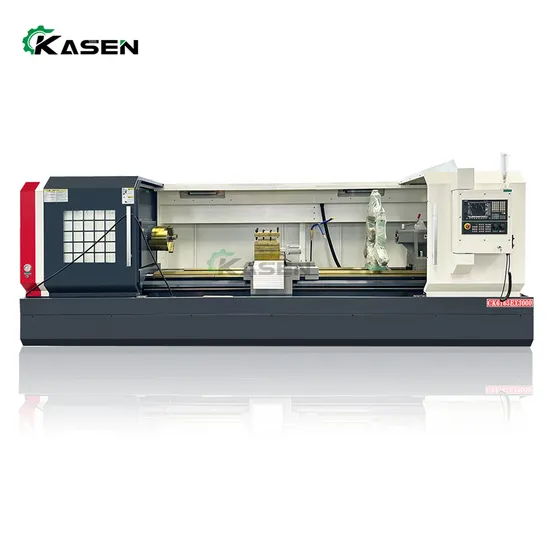

Large Metal Long Work Parts CNC Lathe CK6165 Flatbed CNC Lathe
Product Description
*Spindle with Japan NSK bearing and high speed
* Best igidity and stability Lathe body and guide
* the guide is treated by super audio quenching with high hardness,
* Feed of X.Z axis are driven by all screw with servo-motor
* Electronic hand wheel equipped easy operation.
* Can be free to choose CNC system
* Three gears and stepless speed change with lower noise and high standard machining accuracy;
* Three kinds of spindle bore can be choose (52/82/105mm) while the diameter of chuck is φ250mm and 325mm
Standard Configuration:450mm bed width,4 station electric tool postSpindle hole 105mmManual chuck, manual tailstockGSK control systemOptional configuration:Hydraulic chuck,Hydraulic tailstock,6/8 station electric turret,Siemens/ Fanuc control systemIndependent spindleServo main motor.Auto chip conveyor
Product Parameters

Specifications:		Unit	CK6165
Capability	Max. swing dia. over bed	mm	650mm
	Max. swing dia. over cross slide	mm	375mm
	Max.turning diameter(disc type)	mm	650mm
	Max. processing length	mm	1000/1500/2000/3000
	Max.turning length	mm	900/1400/1900/2900
Spindle	Go-ball dia. of spindle	mm	105
	Spindle taper		90 1:20
	Spindle speed	r/min	10-85,40-350,100-800
	Spindle nose		C11
	Main motor power(Variable frequency)	kw	10
Chuck	Chuck type		Manual
	Chuck size	inch	12
X/Z	X/Z position accuracy		0.025/0.03
	X/Z repeatability		0.01/0.015
	X/Z rapid feeding speed	m/min	4/5 m/min
Work piece	Processing accuracy		IT6-IT7
	Rough degree of proessing surface		Ra1.6
Tool holder	Type		4-position electric type
	Tool bar size	mm	32x32
	Tool holder travel	mm	X400 Z :1200/1600/2100/3100
Total Power		kw	17/18/20
Total current		A	36/40/42
Net weight		kg	4000/4400/5000/5800
Dimension	(LXWXH)	mm	3300/3800/4300/5300x2000x2000

Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
