High Quality Vertical Milling Machine Zx6350c Knee Type Drilling Milling Machine

Product Description

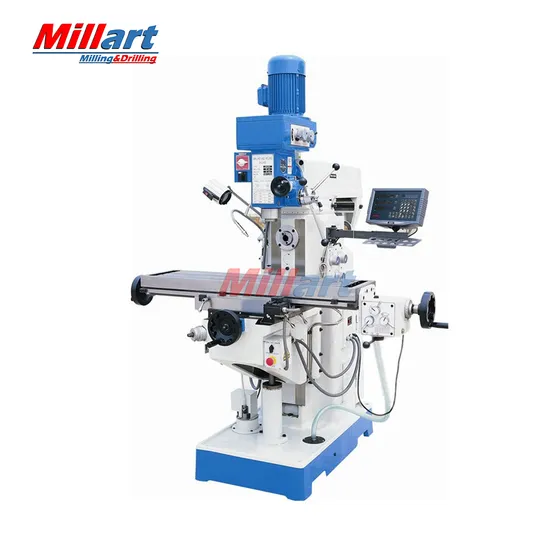

High Quality Vertical Milling Machine ZX6350C Knee Type Drilling Milling Machine
Feartures:
1.X axis is automatic feed through gear box
2.Spindle box is gear driven, quill can fine feed manually.
3.Ram is movable forward and backward, and swivel 180 degrees.
4.Three axis hardened treatment.
5.Mill head can swivel ±45 degree
6.Both vertical and horizontal mill head
Technical parameter:

Model	Unit	ZX6350C
Table size	mm	1200x280 mm
T slot no. /width/distance	mm	3/16/50 mm
Max. load of Table	kg	250 kg
Table XYZ axis Travel	mm	600x240x355 mm
Spindle taper		ISO40
spindle speed /step -- Vertical		115-1750/8steps
--Horizontal		40-1300/12steps
Max.drilling dia.	mm	30
Max.end milling width	mm	100
Max. vertical milling Dia.	mm	25
Max.Tapping Dia.	mm	M16
Quill travel	mm	120
swivel angle of headstock		±45º
Vertical spindle axis to column surface	mm	230-680
Vertical spindle nose to table surface	mm	30-385
Horizontal spindle axis to table surface	mm	0-355
Horizontal spindle axis to arm bottom	mm	200
Ram travel	mm	500
Longitudinal/cross feed	mm/min	24-720/8steps
Longitudinal/cross rapid speed	mm/min	720(X)
Main motor	kw	0.85/1.5(V), 2.2(H)
Feed motor	kw	0.37(X)
Coolant motor	kw	0.04
Overall dimension (CM)	cm	152X1285X215
N/W,G/W	kg	1350/1500

Standard accessories:

Drill chuck

Reduction sleeve

Draw bar

X axis auto power feed

Mill arbors

Collet chuck kits

Coolant system

Chip tray

Work lamp

Tools and box

Optional accessories:

Y axis power feed motor

Z axis motorized lifting

3 axis DRO

Air draw bar

Separately control panel box

58 pcs Clamping kits

Spindle protection

Worktable protection

Worktable swivel ±45 degree

Rotary table HV10

Dividing head BS-0

Machine vice 160mm

Company information:
FAQ
1: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.

---
