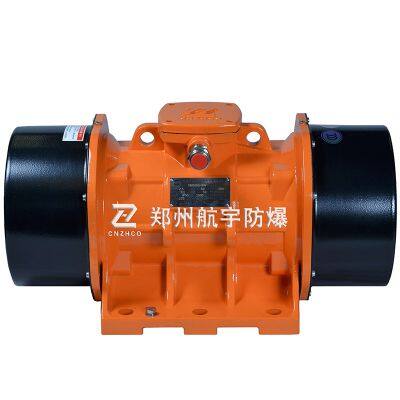

CDX15/3810-G/D 38KN Vibration Motor 460V 400V 50HZ 60HZ Italvibras CDX
YBZU-W series vibration motor is designed with a short and thick structure. Its rotor has double shaft extensions, each equipped with a group of eccentric wheels (eccentric device can only be changed by the manufacturer) with guard shield protection outside.
The rated voltage is 220V, 380V, 415V, 440V, 460V, 480V, 660V, 220V/380V, 380V/660V, 400V/690V, 415V/720V, 440V/760V, 460V/790V; and the rated frequency is 50Hz, 60Hz.
Appearance and Installation Dimensions of YBZU Series in mm.
| Specifications | Installation dimensions | External dimensions |
| A | B | H | K | N | AA | BB | HA | HD | L |
| Basic dimensions | Basic dimensions | Limit
Deviation | Quantity |
| 10-4 | 200 | 110 | 130 | 22 | +0.520
0 | 4 | 250 | 240 | 30 | 295 | 520 |
| 16-4 |
| 11a-4 | 170 | 120 | 130 | 17 |
| 11-4 | 190 | 140 | 130 | 22 |
| 17-4 |
| 30-4 | 260 | 180 | 145 | 26 | +0.520
0 | 4 | 320 | 296 | 33 | 316 | 640 |
| 255 | 155 | 145 | 26/23.5 |
| 225 | 155 | 145 | 22 |
| 35-4 | 245 | 205 | 145 | 32 |
| 38-4 | 255 | 155 | 145 | 26/23.5 |
| 43-4 |
| 38-4 | 270 | 85 | 145 | 26 | 6 |
| 43-4 |
| 55-4 | 305 | 124 | 167 | 26 | 357 | 329 | 35 | 338 | 650 |
| 60-4 |
>>
