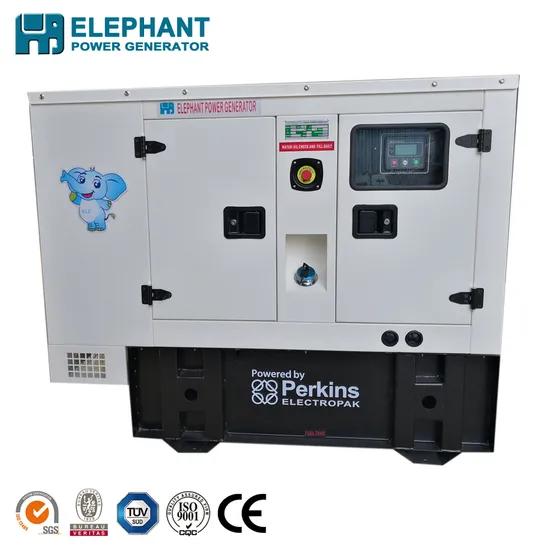

Silent Type 80kw/100kVA Diesel Generator with Perkins Engine 1104c-44tag2

Product Description

Silent Type 80kw/100kVA Diesel Generator with Perkins Engine 1104C-44TAG2
product description
Product Overview 1) Brand-new engine,w/start motor.
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.
5) Circuit Breaker,Exhaust Silencer.
6) Copper Radiator for 40ºC ambient temperature and double-deck cooling,with fan guard and front guard.
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.
8) Skid-mounted bottom 8 hours fuel tank.
9) Extemal recessed emergency stop button for extra safety.
10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.
Genset Specification

Genset Model	BP-100
Prime Power(Kva/Kw)	80/100
Structure type	Open
Dba"@7m	75-98 dba @7m
Engine Model	1104C-44TAG2
Alternator Model	LSA44.2 VS45
DimensionL*W*H(mm)	2300*850*1400
Weight(Kg)	900

Engine Detail

Engine Brand	Perkins Engine
Model	1104C-44TAG2
Engine speed	1500rpm
Engine power
......Standby power	93.6KWm/125.5bhp
......Prime power	108KWm/138bhp
Type	4cycle,in-line,4-cylinder
Aspiration	Turbocharged,
Governor	electrical
Bore*Stroke	105*127mm
Displacement	4.4Litres
Compression ratio	18.2:1

Alternator Detail

Brand	Leroy-somer
Model	LSA44.2 VS45
Output power	84KW
AVR model	R250
Number of phase	3
Power factor(Cos Phi)	0.8
Altitude	≤1000m
Overspeed	2250rpm
Number of Pole	4
Exciter type	Shunt
Insulation class	H
Voltage regulation	±0.5%
Sustained short circuit current	300%(3IN):10s
Total haarmonics (TGH/THC)	<4%
Wave form:Nema=TIF	<50
Wave form:I.E.C=THF	<2%
Bearing	single
Coupling	Direct
