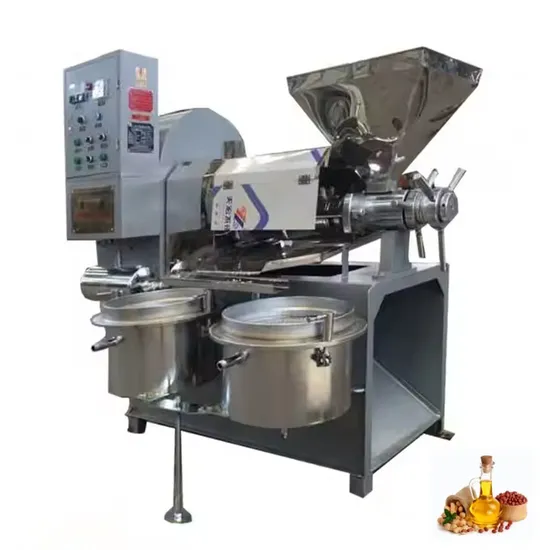

Industrial Screw Oil Extraction Press Machine Oil Pressing Machine

Product Description

industrial Screw Oil Extraction Press Machine Oil Pressing Machine
Product Description
The fully automatic screw oil press is a device that uses the screw extrusion principle to press oil. It is mainly used for individual household processing and small commercial purposes. Its working principle is to crush oil crops under high temperature and high pressure through the extrusion of the rotating screw shaft and the inner wall of the pressing chamber, and squeeze the oil out of the cells.

Working principle When the fully automatic screw oil press is in operation, the processed oil enters the pressing chamber from the hopper. The pressing screw rotates to push the embryo inward continuously for pressing. Due to the high pressure condition of the embryo in the pressing chamber, there is a large friction resistance between the embryo and the pressing screw, and between the embryo and the pressing chamber, which causes relative movement between the embryo particles, thereby promoting the precipitation of oil. Scope of application Almost all oil crops can be pressed by a small oil press, including peanuts, soybeans, sunflowers, rapeseed, walnuts, cottonseed, sesame, etc. Advantages: Simple operation: The fully automatic screw oil press has advanced design, reliable performance, simple operation, convenient maintenance, and high oil yield. Wide range of uses: One machine has multiple uses, it can press peanuts, sesame, sesame, rapeseed and other oil crops. Pure oil: Vacuum filter residue to ensure the purity of oil.

Product Parameters

Model	6YL-80
Handling Capacity	40-70kg/h(cold press) 80-160kg/h(hot press)
Voltage	220V/380v
Main engine Configuration Power	6-5.5kw
Heater	3kw
Vacuum filter power	1.1kw
Diameter of Squeezing Worms	80mm
Speed of Squeezing Worms	60r/min
Diameter of Internal Circle of Pressing Chest	82mm
Dimension	1700*1300*1600mm
Weight	590kg
