En124 D400 Cast Iron Manhole Covers / Rectangular Manhole Cover / Ductile Iron Manhole Covers / Sewer Manhole Cover

Product Description

Product Description

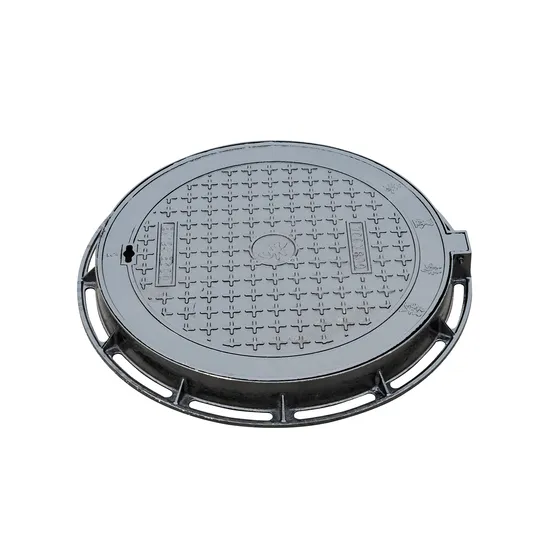

Product Description Ductile iron manhole cover is made from spheroidal graphite cast iron by machining hand moulding, solid top, recessed,double triangular, single seal or double seal, square or rectangular or round,with or without hinge. Very good quality, smooth and free from sand holes, blow holes, distortion or any other defects. Loading capacity is 40 tons. The normal coating is black bitumen 30 microns thickness, also can make the epoxy coating according to the customer's demand.
Deatails Imagines
Product Details
Clear opening size is as below:

Class D400 specifications
Type	Dimensions (mm)			H	e
	A X A	O X O	C X C
Single Sealed, Square	600X600	500X500	532X532	100	50
Single Sealed, Square	700X700	600X600	633X633	100	50
Single Sealed, Square	800X800	700X700	733X733	100	50
Single Sealed, Square	900X900	800X800	833X833	100	50
Single Sealed, Square	1000X1000	900X900	933X933	100	50
Single Sealed, Square	1100X1100	1000X1000	1033X1033	100	50
Single Sealed, Square	1200X1200	1100X1000	1133X1133	100	51
Single Sealed, Rectangular	600X800	500X700	558X762	80	72
Single Sealed, Rectangular	750X550	600X450	636X486	75	69
Single Sealed, Round cover, Round Base	Ф850	Ф600	Ф646	95	49
Single Sealed, Round cover, Rectangular Base	850X850	Ф600	Ф645	100	49
Single Sealed, Round cover, Rectangular Base	700X700	Ф600	Ф645	100	49
Single Sealed, Round cover, Rectangular Base	900X900	Ф710	Ф734	102	41
Single Sealed, Round cover, Rectangular Base	1000X1000	Ф710	Ф734	102	41
Single Sealed, Round cover, Rectangular Base	1050X1050	Ф850	Ф835	100	46
Single Sealed, Round cover, Round Base	Ø750	Ø600	Ø660	100	29
Single Sealed, Round cover, Round Base	Ø780	Ø600	Ø660	100	29
Double Sealed, Square, Recessed Cover	750X750	600X600	694X694	100	29
Double Sealed, Square, Solid Top	750X750	600X600	694X694	100	29

The marks including the customer's logo can be changed. Manhole Cover Series (EN 124) - Maximum load allowed for various classes
- GROUP 1: (class A 15 minimum) Test 1.5 metric tonAreas which can only be use by pedestrians and pedal cyclists.- GROUP 2: (class B 125 minimum) Test 12.5 metric tonFootways, pedestrian areas and comparable areas, car parks or car parking decks.- GROUP 3: (class C 250 minimum) Test 25 metric tonFor gully tops installed in the area kerbside channels of roads which when measured from the kerb edge, extend a maximum of 0.5minto the carriageway and a maximum of 0.2m into the footway.- GROUP 4: (class D 400 minimum) Test 40 metric tonCarriageway of roads (including pedestrian street), hard shoulders and parking areas, for all types of road vehicles.- GROUP 5: (class E 600 minimum) Test 60 metric tonAreas imposing particularly high wheel loads, e.g. docks, aircraft pavements.- GROUP 6: (class F 900 minimum) Test 90 metric tonAreas imposing particularly high wheel loads, e.g. Aircraft pavements.
Application
Application
Packaging & Shipping
Packing & Delivery
