Full automatic screen printing machine with double sided dust removal and stability

Product Description

HY-D58 Double-sided Dust Removal Automatic Screen Printing Machine
Replace the full-automatic printing production line of the flat-lift semi-automatic printing machine, remove dust and static electricity on the front and back of the printing material;
the camera and the display screen assist in the installation of the screen alignment,
Novices can also install it accurately at one time;
PLC touch screen control is simple and easy to learn;
the original flat-lift semi-automatic screen version can be used to reduce new investment.
Product specifications and technical parameters:

Maximum printing area(mm)	500*650
Repeatability	<0.05
Workbench size	590*860
Maximum frame size	750*1030
Print thickness	0~1 mm
Maximum printing speed	900pcs/h
Squeegee skewness	0~30
Screen vertical and horizontal adjustment	+- 10 mm
Power supply	3N-50HZ 380V 1.5KW
Air source pressure (Mpa)	0.4-0.6
Dimensions L*W*H (mm)	2500*1800*2200
Machine weight(kg)	900

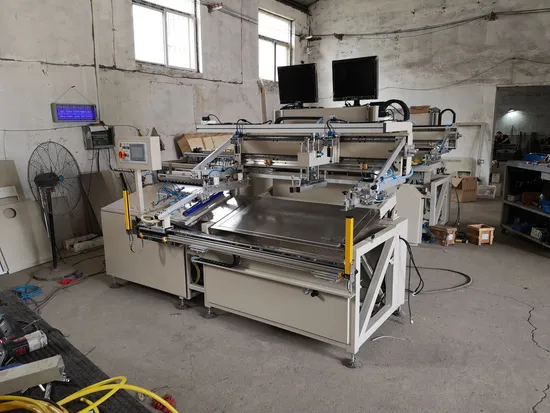

Machine photos:
Automatic screen printing machine process:
Raw materials---Automatic feeding machine (double-sided dust removal, tearing off protective film, static removal)---Automatic printing machine (automatic punching, printing, quality inspection,Automatic feeding)---Automatic oven---Automatic rewinding---Die-cutting, cutting/cutting---finished product.
Automatic feeding, printing, drying, and receiving, one-stop computer program control is completed, and the degree of automation is extremely high. Save labor and greatly improveproduction efficiency.

Duster ZSCT---II Thermoplastic Poly Urethane machine is after-printing corollary equipment, which substitutes for rendition product like logo, ironing, wallpaper, paper, and film. It can powder and Recovery of residual powder as well. It has the advantage of easy to use, flexible adjustment, high efficiency, and no just pollution. Transmission parts in the machine all can be adjusted, and connect to auto screen printing machine or gluing machine. It works well even with those paper and EVA which has high demand in surface. If so desired, it can connect directly to Drying equipment or UV Light curing equipment.

Rongda paper collector

Printed Samples:
About us:
Shijiazhuang Shenghui Machinery Technology Co., Ltd. is an enterprise specializing in the production of flat screen printing equipment. The company integrates research, design, production, development, and sales. With the tenet of "practicality and innovation" and the principle of "integrity and pragmatism", the company serves customers with sophisticated design and perfect technical support.
Packging:
Sea transport:
FAQ:
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color,
thickness, quantity, etc.
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment. Set research, design,
production, development, sales in one, to "practical, innovative" for the purpose, to "integrity,
pragmatic" as the principle, with exquisite design and perfect technical support to serve the majority
of customers.
Q:What's your MOQ?
A: One set.
Q:What`s the price term and payment method?A:We usually use FOB,CIF
Payment method : 100% advance payment by T/T after contract signed,Western Union, or other payment method.
Q:Do you provide samples?
A:No, because the machine is too big and too heavy,so no samples are provided.

---
