Product Details
Product Description
Product Description

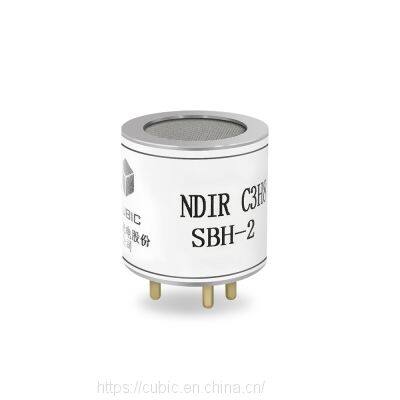

IntroductionThe miniature NDIR C3H8 sensor SBH detects 0-75% of the propane (C3H8) concentration based on NDIR technology, which is superior to thermal catalysis and heat conduction technology.It has the advantages of convenient operation, accurate measurement, reliable operation, simultaneous output of voltage and serial port, and dual beam design.
To meet the different requirements of industrial field and laboratory measurement, it is widely used in gas detection and analysis in petrochemical, chemical, coal, medical, laboratory and other fields.
Features1.NDIR technology, with long life and full measurement range
2.Meet the explosion-proof grade Ex iaⅡC T4 Ga
3.Internal full range temperature compensation
4.Diffusion sampling, stable performance
5.High precision, high resolution 0.01%
6.Small size and fast response
7.Antiseptic
8.Easy to install and reduce maintenance
9.Compatible with digital and analog voltage signal output
Specifications
| Measurement range | 0-2%vol, 0-75%vol |
| Measurement method | NDIR |
| Signal output | UART_TTL |
| Analogue output | 0.4V-2VDC |
| Warmup | 30s |
| Response time | T90＜15s |
| Working voltage | 3.5-5.5v |
| Working current | 75-80mA |
| Ex-proof Level | Ex ia IIC T4 Ga GYB19.1789 |
| Ex-proof No. | GYB14.1127 |
ApplicationsFire Alarm
Underground Pipe Network
Mine Alarm
Oil And Gas Recovery
>>
