Industrial Door Rapid Fast Door Garage Door Overhead Door Radar Sensor Identification of Human and Vehicle Loop Detector

US$65.00-80.00 1 Piece (MOQ)

Basic Info.

Model NO.
PLUTO
Angle
0-180degree Longitudinal
Cable Length
6m
Detection Speed
5cm/S-25km/H
Weight
600g
Transport Package
Carton
Specification
162mm*110mm*65mm
Trademark
Giants
Origin
China
HS Code
9031809090
Production Capacity
50000/Year

Packaging & Delivery

Package Size
24.50cm * 12.00cm * 8.50cm
Package Gross Weight
0.600kg

Product Description

Product Description

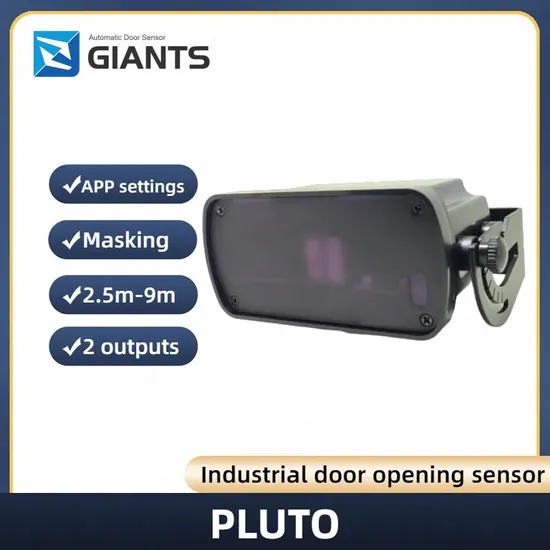

PLUTO
INDUSTRIAL DOOR OPENING SENSOR
Dual-path human-vehicle separation radar
PLUTO is designed for industrial doors,gates and garage doors as an opening sensor, capable of distinguishing between people and vehicles. Batman has a mounting height ranging from 2.5m to 9m, and its cross-traffic masking,digitally adjustable.
It can perfectly replace the loop detector, without the need to dig up the ground, providing both aesthetics and time savings.
Pluto offers two-way individual outputs, ensuring a variety of options for your access entrance
Key Features
People and Vehicle Seperating Detection
PLUTO features dual-path outputs, enabling both human-vehicle separation detection-allowing the door to open only for vehicles-and the ability to open the door fully for vehicles while partially open for pedestrians. This enhances passage efficiency and conserves energy.
PLUTO offering different detetion options:
-Detects vehicles only
-Detects people only
-Detects both people and vehicles.
Cross traffic masking
PLUTO excels in recognizing lateral movements of vehicles or pedestrians, ensuring doors open only when necessary. Its outstanding performance in this aspect sets Pluto apart.
Installation Height (2.5m-9m):
PLUTO has a wide range of mounting heights, from 2.5m to 9m. Achieving human-vehicle separation at extremely low heights is a challenging aspect of radar technology, and in this regard, PLUTO perfectly accomplishes human-vehicle separation
Detection Direction :
3 Options in Direction,
Approaching detection
Leaving detection
Both direction detection
Set by APP or Push button:
PLUTO provides two methods of configuration.It utilizes an APP to configure all parameters, making the setting process effortless. Additionally, physical push buttons are retained. This ensures that the sensor can be tuned in any situation.
With this APP, you could easily configure:
1.Detection object: Vehicle/People/Both
2.Sensitivity:7 levels
3.Field size:9 levels
4.Output hold time:0.2sec to 5 sec.
5.Detection direction:Near/Far/Both directions
6.Cross traffic masking: 9 levels
7.Filter: on or off Wiring
Applications
Application:Gate Application: Cold storage door
Application: Stereo garage door Application: High speed door
Technical Data
TechnologyDoppler radar
Transmission frequency24.125GHz
Transmission power< 20dBm
Detection height2.5m~9.0m
Adjust angle0º~ 180º longitudinal
Detection speed5cm/s ~ 25km/h
Filed size3.0m*3.5m@2m height;
6.5m*8.5m @9m height
Temperature-30ºC to +60ºC
IP classIP65
Power supply12-36V AC/DC
Output Max. voltage 48VAC/DC; Max. current 1A
Cable length6m
Weight600g
Housing materialABS+PC

PLUTO, the accurate and dependable sensor for your industrial door sensing needs!
