Product Details
Product Description
Product Description
Product Description

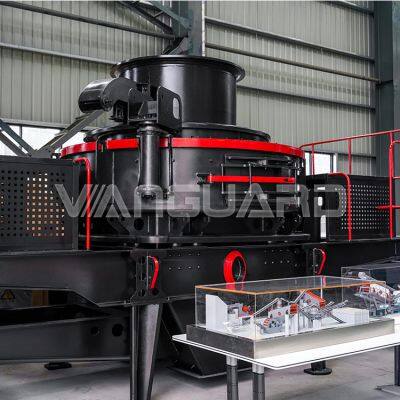

5X series new sand making machine (centrifugal impact crusher) is widely used in various kinds of metal and non-metallic ores, cement, refractory abrasives, glass raw materials, constructionaggregate machine made sand, metallurgy and other industries. It is suitable formedium and finely crushing all kinds of ores and rocks with different hardnesssuch as iron ore, non ferrous metal orecorundum, bauxite, quartz sand, browncorundum, perlite, basalt and otherhigh hardness materials.
PRODUCT ADVANTAGES
Performance improvement of key parts
In order to ensure the overall performance of the sand making machine, key parts on it is optimized on their structures, such as the impeller, the bearing cylinder and the main body.
Quick change of crushing mode
With optimized stucture of crushing cavity, it can realize the rapaid conversion of two crushing modes which are crushing between stones and crushing between stone and impact plate.
Intelligently controlled diluted oil lubrication
It adopts diluted oil lubrication and is equipped with air-cooled system which is controlled by PLC and intelligent insturments, so the lubrication temperature can be adjusted to provide ideal working condition for the bearing.
Processed Materials:
Limestone, Granite, Basalt, River Stones, Quartz, Copper Ore, Iron Ore, Marble, etc.
PRODUCT PARAMETERS
Model
| 5X7615
| 5X8522
| 5X9532
| 5X1145
|
Capacity (t/h)
| Cascade and Central Feeding
| 150~280
| 240～380
| 350～280
| 250～360
|
Fully Central Feeding
| 70~140
| 120~200
| 180~280
| 250~360
|
Max. Feeding Size(mm)
| Soft Material
| ＜35
| ＜40
| ＜45
| ＜50
|
Hard Material
| ＜30
| ＜35
| ＜40
| ＜45
|
Rotation Speed(r/min)
| 1700~1900
| 1500~1700
| 1300~1510
| 1100~1310
|
Double Motor Power(kw)
| 150
| 220
| 320
| 440
|
Overall Dimension LxWxH(m)
| 4.1×2.3×2.3
| 4.14×2.5×2.7
| 4.56×2.6×2.9
| 5.1×2.79×3.32
|
Power Supply
| 380V, 50Hz
|
Thin Oil Lubrication Station
| Double oil Pumps Motor’s Power(kw)
| 2×0.31
|
Safty Assurance
| Dual oil pump system stabilize oil supply; switch-off automatically without oil flow or oil pressure; air coolingsystem /water
cooling system available; preheating-start engine adopted.
|
Power of Oil Tank Heater (KW)
| 2
|
PRODUCT EXHIBITION
CUSTOMER CASES
Packaging and Shipping
view more >>Recommended by seller
High Efficiency Stone Crusher Machine Mobile Concrete Crushing Plant$31,000.00 - $142,000.00 / set1.0 set
Good Price Mining Quarry Limestone Crushing Equipment Tracked Mobile Jaw Stone Crusher For Sale$72,000.00 - $196,000.00 / set1.0 set
Gravel Rock Granite Gold Mining Machinery For Sale Fob Price Stone Symons Cone Crusher$3,700.00 - $56,000.00 / set1.0 set
Competitive Price 20 Tph Stone Crushing Plant Line Pe 400x600 Jaw Crusher$6,200.00 - $19,000.00 / set1.0 set
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get best service at lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many
mining projects in China & Overseas.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
>>
