Cheap Price Gear CE Approved Sumore Milling Turret Fresadora Horizontal Vertical Grinding Machine

Product Description

Product Description

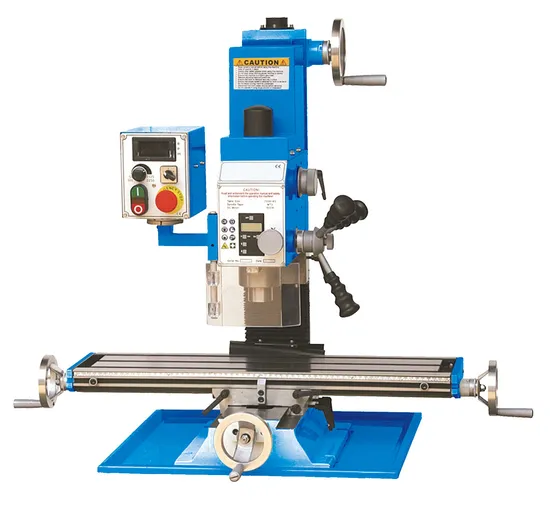

vertical small manual Milling drilling Machine power 750W SP2217-III SUMORE small milling drilling machine cheap mini torno fresadora Universal Vertical Drilling and milling machine for metal SP2217-I Hobby desktop mini desktop mill drill milling machine Mini metal milling machine made in China, but same quality with Japanese made milling machine
Quick detais
1.Drilling capacity:25mm
2.End mill capacity:20mm
3.Face milling capacity:63mm
4.Head tilt left & right:+90°
4.Spindle taper:MT3 or R8
5.Spindle speed: 50-2250rpm
7.Working tabel:500*180/700*180mm
7.Power:750W
Features/Advantages
Robust Construction & Stable PerformanceBrushless Motor & Variable Spindle SpeedFine & Smooth Feeding Movement on Every DirectionsHigh Precision for Model EngineeringChangable Table Length for Different WorkpiecesOptional Spindle Speed & Cutting Depth Digital ReadoutOptional Automatic Longitudinal Feeder
Product Parameters

Model	SP2217-III
Drilling Capacity	32 mm
End Mill Capacity	25 mm
Face Mill Capacity	70 mm
Longitudinal Axis Travel (X)	425 / 625 mm
Cross Axis Travel (Y)	220 mm
Headstoeck Axis Travel (Z)	370 mm
Table Effective Size	700 / 840 x 210 mm
Spindle Taper	MT2
Spindle Speed Range	50-2,250 rpm
Distance Between Spindle to Table	50 mm
T-slot Size	14 mm
Head Tilt Angle (Left / Right)	90° / 90°
Motor Power	750 w
Net Weight	113 / 125 kg
Packing Size (LxWxH)	670 / 870 x 550 x 860 mm
Gross Weight	138 / 150 kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
