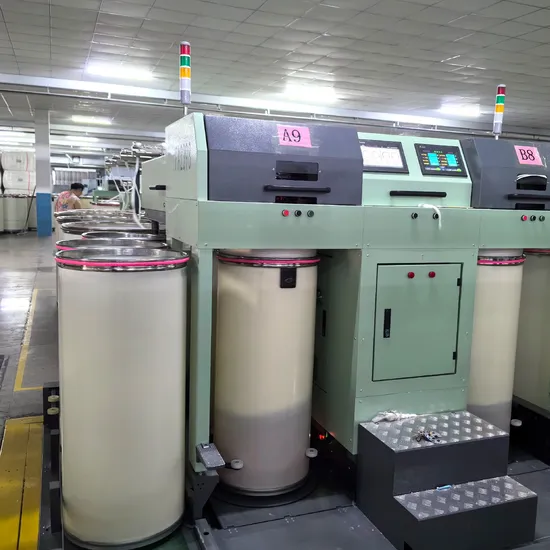

China Textile Machinery Cotton Spinning Machine Draw Frame

Product Description

Product display and advantages
Main Feature :
• Two delivery holes can be operated separately, producing two different kinds of materials. The delivery can diameter can
be up to φ1000mm. The modular design improves working efficiency. The auto-can change and coiler parts are separated,
making installation and transport easy.
•Adopting digital drafting adjustment technology, two coders, and one servo control, with close-loop control, enables stepless adjusting of the drafting times. High weight adjusting precision (up to 0.05g/5m).
•Leading auto-can changer sliver breakage technology truly realizes auto-can changing, improving production efficiency by
about 15%. The leading auto-can changer device adopts backward in and front out, driven by an air cylinder, making it easy
to operate.
•Equipped with a touch screen for man-machine communication, it's easy to adjust the sliver weight and other process
parameters. The machine adopts timing-belts, V-belt, and poly V-belt driving with high driving precision and lower sound.
The overall cradle structure integrated with the upper roller makes it easy to operate.
•With a separated dust-removing hopper and auto cotton-scraping device to reduce interference to the machine. The fan
motor applies static-electricity control and frequency control, saving energy and reducing costs.
•The visual design of HMI reversed computer internet interface allows remote control, diagnosis, and maintenance. The
whole machine can be placed on the ground without digging a pit, making it easy to operate.
Main Feature :
The Draw frame FA2398 comes with an integrated upper roller structure for ease of operation. It has fewer belts and driving parts, making it more efficient. The two smaller discs ensure accuracy with the automatic leveller. It also features a front-loading scraper for cleaning.
Product Details
Adopt digital draft adjustment technology, two checks and one control, closed-loop control, stepless adjustment of draft multiple, sliver weight adjustment accuracy reaches ±0.05g/5m. Leading auto-can changer sliver breakage technology,truly realizing auto-can changer ,the producing efficiency can be improved about 15%.
With touch screen,realizing man-machine communication,it's convenient to adjust the sliver weight and other process parameters. The machine adopts timing-belts and poly v-belt driving,with high driving precision and lower noise.
The coiler adopts an integrated process of alloy aluminum coated stainless steel, copper tube inserted into the bottom, coil bottom plate coated with stainless steel, and special surface treatment process, which effectively solves the problem of cotton sliver caused by electrostatic adsorption;
Main technical parameters

FA2398 High Speed Draw Frame With Autoleveller System
Holes	1+1 Holes,Two delivery holes can be operated separately, which can producee two different kinds of materials and the efficiency must be improvved
Delivery speed	200 ~ 1000m/min
Total Drafting times	4.54-11.56
Drafting style	Three over three with top guiding roller
Suitable fiber length	15-80mm
Feeding sliver numbers	6-8pcs
Feeding can size(mm)	Dia.: Φ400.Φ500,Φ600.Φ800,Φ800. Φ1000 Height:900,1100,1200mm
Output can size(mm)	Dia.:φ500.600, Height:1100,1200mm
Machine size	2200*1963*2020mm
Machine weight	2800KG
Power	Main motor:4.5KW*2 Servo motor:1.5KW*2 Fan motor : 1.5KW*2
FA2388 High Speed Draw Frame With Large Package
Holes	1+1 Holes,Two delivery holes can be operated separately.
Delivery speed	200 ~ 1000m/min
Total Drafting times	stepless adjustable
Drafting style	Three over three with top guiding roller
Suitable fiber length	15-80mm
Feeding sliver numbers	6-8pcs
Feeding can size(mm)	Dia.: Φ400.Φ500.Φ600.Φ800.Φ800.Φ1000 Height:900,1100,1200mm
Output can size(mm)	Dia.:Φ1000 Height:1100 or 1200mm
Machine size	3022×2360×2020mm
Machine weight	2600KG
Power	Main motor:3.5KW×2 Servo motor:2KW×2 Fan motor:1.8KW

Parameter Comparison

FA2398	FA2388
Total Drafting times
4.54-11.56	Stepless Adjustable
Feeding sliver numbers
6-8pieces	6-8pieces
Output can size
Dia.:φ500.600, Height:1100,1200mm	Dia.: φ1000 Height : 1100 or 1200
Machine size
2200*1963*2020mm	3022×2360×2020mm
Machine weight
2800KG	2600KG
Power
Main Motor:4.5kw*2, Servo Motor:1.5kw*2 Fan Motor : 1.5kw*2	Main Motor : 3.5kw×2 Servo Motor:2kw×2 Fan Motor:1.8kw

FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

---
