Pmg550 2kw 380VAC 150rpm Vertical Axis Wind Turbine Disc Coreless Pmg Three Phase Permanent Magnet Alternator Generator

Product Description

PMG Features : Our disc coreless PMG have advantage in low Rated speed, Low starting wind speed, Small size and light weight ,Low start torque. Compact structure,High efficiency etc.
1) Coreless, anhysteresis, slotless, have low starting torque.
2) No iron loss, have high efficiency
3) Adopt unique coreless precision winding technology design precision coil
4) Adopt the rare earth permanent magnet, which is multipole, high power density and high output power.
5) Low speed direct driving, no torque fluctuations
6) Compact structure, high ratio of power to volume
7) No iron loss, low calorific value,small temperature rise
8) Simple structure, easy to install
9) The brushless structure, free maintenance

PERFORMANCE PARAMETER

NO.	PARAMETER	UNITS	DATA
1	Rated power	KW	2
2	Rated speed	RPM	150
3	Rated voltage	V	380VAC
4	Rated Current		3.1
6	Efficiency		>85%
7	Resistance (Line-Line)		-
8	Winding type		Y
9	Insulation Resistance		100Mohm Min(500V DC)
10	Leakage level		<5 ma
11	Start torque	N/M	<0.3
12	Phase		Three phase
13	Structure		outer rotor
14	Stator		coreless
15	Rotor		Permanent magnet type (outer rotor)
16	Gen. Diameter	mm	550
17	Gen. Length	mm	330
18	Gen. Weight	kg	65
19	Shaft. Diameter	mm	78
20	Housing Material		Aluminum ( Alloy )
21	Shaft Material		Steel

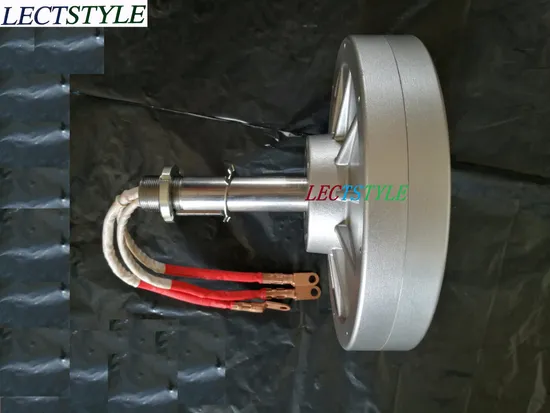

Product Picture
Application Picture
Package Picture
Clean, saving and low noise wind resources will be the most important renewable resource of this century, after years of studying on wind turbines, with unique innovative design and superior process, our products are combined with the advantages of the coreless and disc motor, The wind power equipments equipped with our products mainly used in cities, villages, roads, tunnels, buildings, parks, squares, barracks and islands, etc. it supplies quiet and natural energy, it's a energy-saving, environmental protective, landscaping, green product. It has below characters:
1, Low-speed, high efficiency
2, No cogging torque
3, Low startup torque, power generating in breeze
4, Direct drive, smooth operation
5, Good cooling effect, a small temperature rise
6, Long life, low noise
To adapt to different use of the environment, the company can according to customer's different needs, combined with regional wind characteristics, development fit the specific requirements of the new products, give full play to the advantages of wind energy resources, create the greatest value to mankind, welcome customers to contact us.
All parameters could be customized based on your special requirement........

Other products :

Series	Power	Speed	Voltage	Battery	Remarks
	Kw	rpm	VDC	Recommended
63DM1	0.1	500	96	24
	0.1	450	28	24(12)
	0.1	450	14	12
	0.1	380	28	24(12)
95DM0	0.2	380	28	24
	0.2	380	14	12
95DM1	0.3	380	42	36
	0.3	380	28	24
	0.3	380	14	12
	0.3	450	50	36
	0.5	450	28	24
95DM2	0.5	380	28	24
	0.5	380	56	48
	0.5	380	42	36
	0.5	450	32	24
	0.5	450	65	48
	0.4	380	28	24
133DM0	1	300	80	48
	1	300	56	48
	1	300	115	96
	1	350	100	96
133DM1	2	300	152	96
	2	300	115	96
	2	300	56	48
	2	300	230	192
	2	350	186	115
	3	380	150	115
	5	350	230	230
133DM2	1.5	300	115	96
	1.5	300	56	48
	1.5	300	230	192
178DM0	3	300	115	96
178DM1	5	300	230	192
237DM0	7.5	300	230	192
237DM1	10	300	230	192

---
