20T Hydraulic Swing Arm Cutting Machine/Cutting Press/Clicking Press/Shoe Machine

Product Description

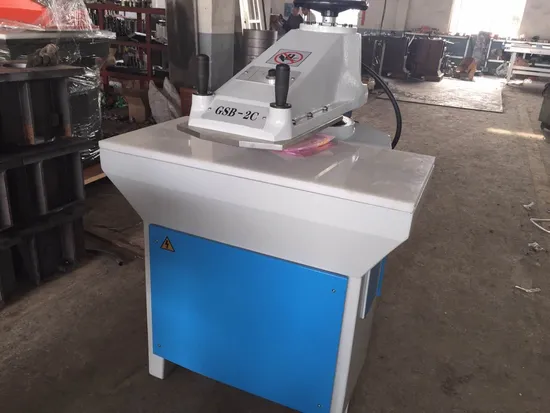

GSB-2C/20 Hydraulic Swing Arm Cutting Machine
Use: It is used to scissor up plastic boards, leather, fibre, cotton fibres, paper carton and other similar materials.
Features:
1) Safe, two-hand trip operation; The sway arm can swing freely. Best operation line of sight;
2) Used to cutting plastic boards, leather, fiber, cotton fiber, paper cartons and other similar materials, especially suitable for shoe industry;
3) Equipped with lubricating system to lessen wear and prolong service life;
4) Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality shoes;
5) People can adjust height of sway arm from table by simple handle, convenient, stable.
Main data:

Model	GSB-2C/20
Max cutting Force	20 Tons
Sway Arm Width	350× 550mm
Stroke Adjustment	5-75mm
Distance Between Upper Board And Lower Table	65-150mm
Table Area	1000× 500mm
Electrical Supply	3x440/415/400/380/220/200V, 50/60 Hz
	single phase 240/220V, 50/60 Hz
Motor Power	1.5kw
Packing Size(L× W× H)	1100× 1100× 1600mm
Weight ( Without Oil )	900Kg
Hydraulic oil (46#)	60 Liters

Remark:The machine include cutting board,tools and spae parts.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, and you can choose any color for your machine.
