High Quality Machine PVC Plastic Profile Extrusion Production Line

Product Description

High Quality Machine PVC Plastic Profile Extrusion Production Line
Product Parameters

Main technical parameter
Items	ST180	ST240	ST300	ST600	ST900	ST1200
Max.width of board(mm)	180	240	300	600	900	1200
Drawing height(mm)	150	150	150	150	150	150
Drawing speed(KN)	2	2	2	30	40	50
Drawing speed(m/s)	0-5	0-5	0-5	0-3	0-2.5	0-2.5
Auxiliary equipment sum power(kw)	35	35	30	30	40	45
Cooling water consume(m3/h)	6	6	6	9	12	15
Compression air(Mpa)	0.6	0.6	0.6	0.6	0.6	0.6

Product Description

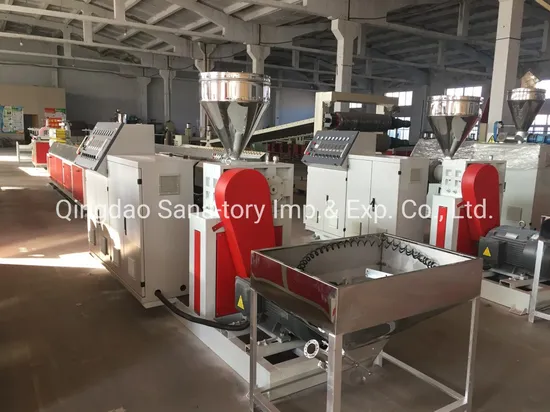

SJSZ65/132 Conical Double/Twin Screw Extruder
Model: SJSZ65/132
The advantages over other companies in this field:
Good shearing, high output, reasonable design, high accuracy and easy control. High-grade materials and parts with steadfast performance. The main transducer is from ABB.
Computer control system: OMRON
Contactor: SIEMENS
Motor power: 37KW
Working method of the main motor:Three-phase asynchronous motor, connected to the gearbox by coupler
Capacity: 250kg

Vacuum calibrating cooled table
Calibrating table: 6000mm
Vacuum pump power: 4kw/unit
Water pump power: 3kw/unit
Lengthwise travel motor power: 1.5kw

Pedrail style puller and cutter
Puller length: 1500mm
Driven motor power: 3.7kw
Speed-drawing: 0-2m/min
Pressed tightly mode: pneumatic
Cutting motor: 3kw

Characteristics of the equipment:
PVC profile production line is mainly used in PVC door & window profiled material, wide door plate, window plate, For different sectional surface and molds, with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc. Capacity of main frame can be optionally chosen from 60-700 kgs/hour. The haul-off unit has applied unique lift technique of our company.
Its work is stable, its reliability is good, its pulling force is large. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding. Movement speed and drawing speed of cutting machine keep synchronous. it is particularly suitable for high speed extruding of profiled material.
