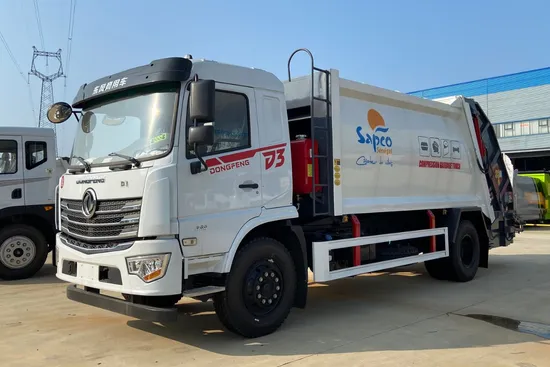

14cbm Dongfeng Refuse Collection Truck for Efficient Waste Management

Product Description

Product Description
Compressed garbage truck, the whole vehicle is fully sealed, self-compression, self-dumping, compression process of sewage into the sewage compartment, a more complete solution to the problem of secondary pollution in the process of transportation of garbage, with a high compression ratio, high pressure, large loading capacity, sealing, environmental protection, easy to operate, safe, high power utilization of the vehicle. Detailed Photos
Product Parameters

Vehicle Description
Overall dimensions	8450*2550*3450mm
GVW	18000kg
Chassis brand	Dongfeng
Traction type	4*2

Chassis Description
Cab	Sleeper cabin, 2 seats with one bunk with A/C
Engine	Brand	CUMMIN
	Model	Diesel: 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-char in and inter-cooling
	Emission standard	EURO 2
	Displacement (L)	5900
	Horsepower	210 HP/155kW
	No of cylinder	6
	Maximum torque	560N.m @ 1100~1600rpm
Transmission	Manual, 6-speed forward, 1-speed reverse
Axle	Front 5 ton, rear 10 ton.
Tire	10.00R20

Up-parts Specification
Dustbin volume	12cbm
Material & thickness	Side	4mm Q345
	Bottom	5mm Q235A
Type of Rear garbage filler(Rear Turnover device)	1. Hanging trash bin
	2. Swing arm
	3. Dustpan
Control system	Electrically Controlled Hydraulic + Manual Hydraulic
Type of compactor	Fill, push, and compression
Garbage compact density	0.9±0.05 T/cbm
Sewage water tank	Rear	About 500L, on the bottom of the rear filler
	Front	About 230L, on the front of the garbage van
Max Compact	≥141 KN
Max push	≥189 KN
Tailgate ascending Angle	~95°
Cycle of loading	≤40s
Cycle of discharge	≤45s
Hydraulic pressure system working pressure	16 Mpa
PLC	Importation PLC (Programmable controller)
Gear pump	Made in China
Multi-way valve	Air controlled, Made in China
Hydraulic oil cylinder	Made in China
Hydraulic rubber hose	Made in China
