Jinnfa Yk-32e Flat Bed Horizontal High Rigidity High Precision CNC Turning Machine Metal Lathe

Product Description

JINNFA
POLOMAC TECHNOLOGY(QING DAO)L.L.C

Company Profile
We have done a great deal to ensure the quality of our machines meets international standards. To this end, we have rigorous inspection procedures, which are conducted throughout all phases of the manufacturing process. This allows us to ensure the ultimate in quality. This commitment to quality and expert workmanship enables JINN FA to offer machines that fully meet customers' strict requirements of machine performance.
JINN FA Machine industrial Co., Ltd. was established in 1976 as a Precision Metal Lathes Machine Tool Manufacturer. JINN FA designs and manufactures a wide range of auto lathes, cnn lathe machines, CNC machining centers and special purpose machines. Based on the company philosophy of technological innovation and leadership, JINN FA has spent great efforts in the research and development of advanced machine tools. Our precision cnc metal lathe machines have been widely sold to many countries in the world. Each metalworking lathe and machine is manufactured to the highest quality standards, with the highest versatility, providing the most competitive edge for parts machining. JINN FA machines are further enhanced by fine craftsmanship, which guarantees the user outstanding precision performance. Today JINNFA continues to labor at the technological forefront of the machine tool industry, maintaining a reputation for innovation design, state-of-the-art manufacturing techniques and rigorous quality control.
JINNFA continues to expand its service market, adhering to the company's belief of continuous technological innovation and technological leadership. In 2001, China POLOMAC TECHNOLOGY Co., Ltd. was established to enable every Jinnfa machine to serve the world.
A highly reputed manufacturer of CNC precision metal lathes, CNC machining centers and special purpose machines.

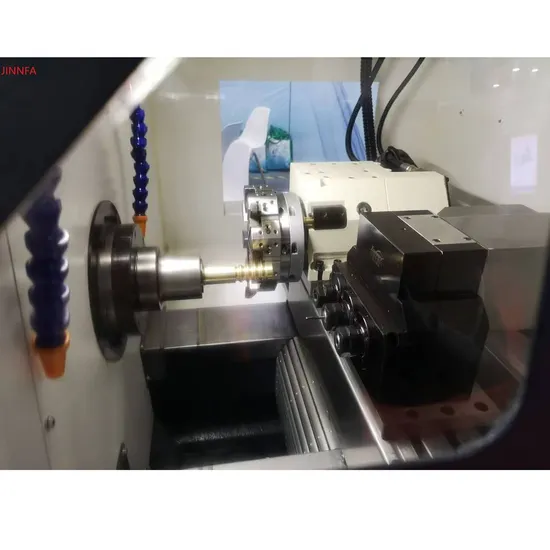

JINN FA Gang Tool CNC Lathe's Advantage:
1: Simplicity and Affordability
Gang tool lathes are often more cost-effective than turret lathes due to the simplicity of their tool change process. The lathe's standard axis servos and leadscrews handle all the work, whereas motorizing a turret can increase costs significantly.
2: Precision
Gang tool CNC lathes have an accuracy advantage over turret lathes due to their simpler moving parts, which reduces tolerance stack up and other types of slop. Additionally, the gang lathe is better suited for moving parts across shorter distances.
3: Rapidity
The tool change process in gang lathes is incredibly speedy as it utilizes slide motion for tool changes, eliminating the need for turret indexing.
4: Quick Installation
Gang tooling lathes offer fast setup times, with a simple set of tools and the ability to switch out a single block for a specific size twist drill allowing for a wide range of gang work to be accomplished.
5: Durability
Gang Tool lathes are known for their robustness, which is directly linked to their simplicity. With fewer moving parts, gang lathes are less prone to errors and malfunctions.

ITEM	UNIT	YK100E	YK100/YK100A
Max.swing overbed	mm	320	320
Max.turning diameter	mm	Ø180	Ø180
Max.turning length	mm	220	220
Max.bar capacity	mm	Ø42	Ø42
Spindle bore diameter	mm	Ø55.5	Ø55.5
Spindle nose		A2-5	A2-5
Spindle speed range	rpm	45~4000	45~4000
Spindle motor	kw	Standard:5.5/7.5
Number of tool stations		gang type tool	Hydraulic turret-10T
Max.stroke X/Z axis	mm	110/230	110/230
Rapid traverse X/Z axis	m/min	20/20	20/20
Turret indexing time	sec	0.2	0.3
Machine design	deg	20°	20°
Slide way type		Square guide way
Quill taper		-	MT4
Tailstock traverse	mm	-	100
Spindle hydraulic chuck		6"(OP: Collet 173E)	6"(OP: Collet 173E)
Turning tool diameter	mm	20	20
Boring tool diameter	mm	Ø32	Ø32
X/Z axis ball screw	mm	Ø32	Ø32
Diameter X/Z servo motor	kw	Standard:0.85/1.0
Hydraulic motor	kw	0.75	0.75
Lubrication system motor	w	150	150
Power requirement	kva	10	10
Coolant tank capacity	L	80	80
Machine dimensions(LxWxH)	mm	1800×1550×1780	1800×1550×1780
Weight	kg	2200	2350

---
