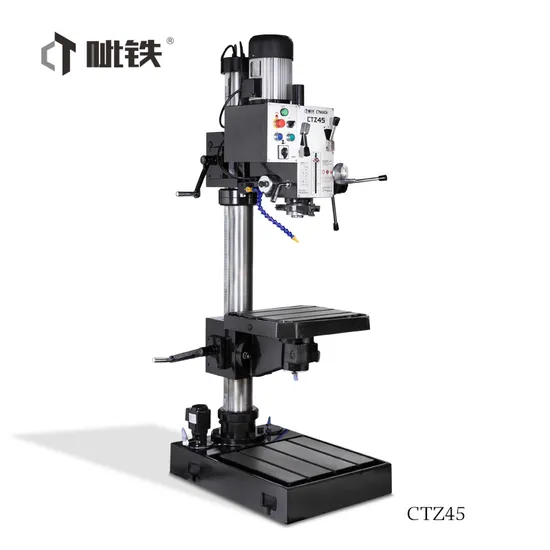

Vertical Drilling Machine Ctz45 with CE

US$1,730.00
1-4 Sets
US$1,661.00
5-9 Sets
US$1,592.00
10+ Sets

Basic Info.

Model NO.
CTZ45
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
750*1000*1850mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Product Description

Max.Drilling capacity 45mm
Table size 380X300mm
Size of stand worktable of avaliability 417X416mm
Max.travel of worktable bracket 600mm
Spindle taper MT4
Spindle travel 130mm
Max.travel of headstock 250mm
Distance from spindle to column guide rail 283mm
Distance from spindle end to table surface 725mm
Max.distance from spindle nose to stand table 1125mm
Step of spindle auto-feeding 6
Spindle speed range/Grade 80~1250r/min(6)
Motor Power 1.5KW
Motor speed 1400r/min
Net weight/Gross weight 435KG/485KG
Overall dimensions 750x1000x1850mm
Package Size 770x820x1850mm
