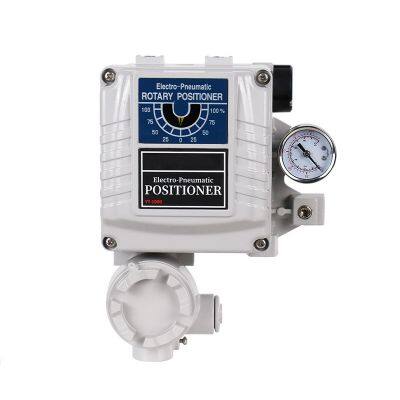

| model | YT -1000 | ||
| Cover shell material | aluminium | ||
| Trip distinction | Straight trip | ||
| Forms of action | Single-action / dual-action vs | ||
| incoming signal | 4~20mA DC | ||
| input pressure | 0.14 ~ 0.7 MPa (1.4 ~ 7 bar) | ||
| route or distance of travel | 10 ~ 150 mm | ||
| impedance | Max.250 ± 15Ω | ||
| Gas source interface | Rc 1/4 or G 1/4 or 1/4 NPT | ||
| pressure gauge connection | Rc 1/8 or 1/8 NPT | ||
| Power interface | G 1/2 or 1/2 NPT or M20x1.5P | ||
| levels of protection | IP66, Ty pe 4X | ||
| anti-hazard classification | N . Not explosion-proof | ||
| M .Ex db mb IIB T 5 Gb (ATEX , IECEx , TS) Ex dmb IIC T5 (KCs) Ex db mb IIB T5 Gb (INMET R O ) A .Ex d m IIB T5 (FM, CSA) C .Ex dmb IIB T 5/T 4 (KCs) H.Ex d mb IIC T 6 Gb (NEPSI ) X .Ex dmb IIB T 5 (TIIS ) E .Ex d mb IIB T5 Gb X (TRCU) i.Ex ia IIB T6 Gb (KC s ) P .Ex ia IIC T6 Ga (NEPSI) Z .Ex d mb IIB T5 Gb (CCC) B.Ex d mb IIC T6 Gb(CCC) G.Ex ia IIC T 6 Ga (CCC ) | |||
ambient temperature | Work to warm up | normalized form | -20°C ~ 70°C (-4°F ~ 158°F) |
| high temperature modification | -20°C ~ 120°C (-4°F ~ 248°F ) | ||
| Low form | -20°C ~ 120°C (-4°F ~ 248°F) | ||
| Explosion-proof ambient temperature | Refer to “Manual 2.6 certifications” for details | ||
| linearity | Single-action | ± 1% F .S . | |
| Double- -acting | ± 2% F .S . | ||
| lag degree | ± 1% F .S | ||
| sensitivity | single- action | ± 0.2% F .S . | |
| double -acting | ± 0. 5% F .S . | ||
| repetitiveness | ± 0. 5% F .S . | ||
| rate of flow | 80 LPM (Sup. =0.14 MPa) | ||
| gas consumption | 2.5 LPM (Sup . =0.14 MPa @ idle) | ||
| Feedback signal (option) | 4~20mA (DC 9~28V) | ||
| weight | 2.7 Kg (6.1 lb) | ||
| coating material | Epoxy polyester powder coating | ||
