Chinese Manufacturer FRP Glass Fiber Adsorption Tower

Product Description

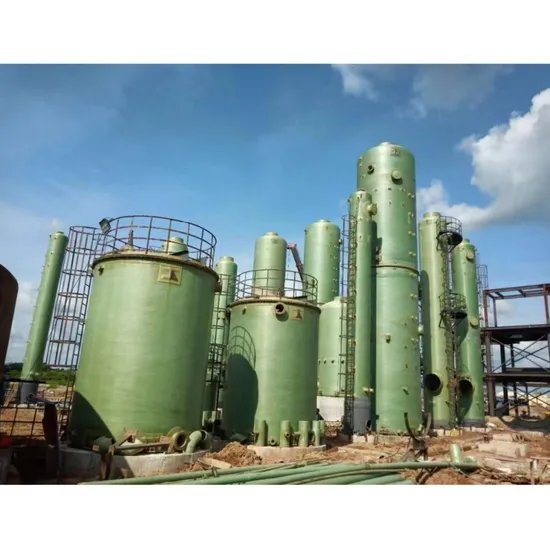

What's FRP Tower?
FRP/GRP tower is made with fiberglass and resin with filament winding process, it's characteristics are:
· Light weight, its density is 1.5-1.9, equals one forth of the steel, but its strength is higher.
· Corrosion resistant, we can select different kind of resin against the variety of the media, such as acid, alkaline, salt and oil etc.
· The inner surface is very smooth, the roughness coefficient is 0.0084, it is easier to clean, and has good sanitary property.
· Good property against low temperature, it can be used under the condition of -80ºC.
· Good thermal insulation property, its thermal expansion factor is 2*10-5/ºC, the thermal conductivity is 0.2 Kcal.m/m2.h. ºC.
· The formation is easy, maintenance is convenient and it is suitable for the comprehensive equipment, the diameter is more than 4000mm can be fabricated on jobsite.
· It's volume is 1m3-5000m3, and already be widely used for Chemical, Petrochemical, dyeing, pharmaceutical, metallurgy, brewing, water treatment, chlor-alkali, etc many different industries.
Product Description
GRP tower is composed of inner layer, the structural layer and outer layer. The Inner layer is included resin rich layer and middle layer
1) Resin rich layer
It is corrosion-resistant layer composed by resin coat and surface mat. The content of resin is more than 90%, and the thickness is not less 1.7mm.
2) Middle layer
It adopts E-chopped fiberglass and inner liner resin. The content of resin is from 65% to 75% and the thickness is not less 3.3mm. This layer can efficiently prevent the extension of fine cracks on inner surface. So it plays a role of double protection.
3) Structural layer
This layer reinforces the inner surface and leakage proof layer, resisting the out load of the tower and guarantee rigidity and strength of the pipe. It adopts the combination of E-glass woven fabric, helical winding and hoop winding. The adopted resin is structural type and the content is from 55% to 65%. The thickness depends on the calculation of the specific condition. At the production of this layer, our company adopt cross winding process, so it can avoid the occurrence of hoop cracks efficiently.
4) Outer surface layer
It is ageing resistant layer. The resin adopted includes ultraviolet absorbent and paraffin, so it can efficiently prevent the tower from ageing under the ultraviolet radiation outdoors. The thickness is 1.5mm, the content of resin should be more than 90%.
Product Parameters

Vol (m3)/Dia (mm)	DN1600	DN2000	DN2400	DN2800	DN3000	DN3600	DN4000
10	5270	3540	2640
30		9910	7060	5360	4780
50			11480	8610	7610	5560
80					11850	8500	7090
100							8680
110							9480
120							10270

Company Profile
Certifications
FAQ 1. Q: Are you Trading Company or Manufacturing Factory?A: We are both manufacturer and trading company. We have our own factory for almost 10 years, and we have better service of overseas customers. Welcome to send your inquiry!2. Q: How about the Delivery time?A: Normally, 10-15 days to finish the order for a 20ft container. Welcome to ask for the detailed delivery time according to your order quantity!3. Q: How can you guarantee the product quality?A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.4. Q: What is about the payment terms.A: Basically, the payment terms are paypal, T/T, L/C at sight. Western Union.5. Q: Can you do OEM for me?A: We accept all OEM orders, just contact us and give me your design,we will offer you a reasonable price ASAP.

---
