Product Description
Product Description

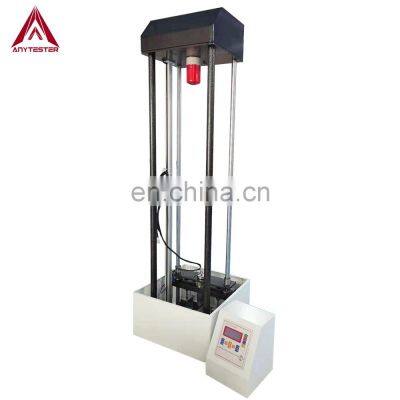

Product DescriptionHY7610-II Safety Shoes Impact Tester in line with “national standard”, steel head of safety shoes placed in the bottom of machines red-edge, heavy hammer at a certain height free fall to impact, then check the degree of subsidence, the weight of heavy hammer is 23 ± 0.2kg . The sample fixed on the device, adjust the height of heavy hammer. Then make heavy hammer free-fall to impact test. After the test, remove the rubber to measure its size, the value ≥ 15mm is OK.StandardsEN ISO 20344AS/NZS 2210.1GB/T 20991 BS/EN 13274-3, EN 149CAN/CSAEN 12568Note: For more standards, please contact us.Futures★ Machine equipped with impactor profile★ Electronic height encoder★ Rebound catcher to make sure the test value accurate★ Electromagnet release device to protect operatorSpecificationModelHY7610-IIHammer20±0.2Kg, 22.7±0.2Kg,Impact of edge90°(R )3mm or otherImpact energy(EN) 200J, (ANSI) 100±2JHorsepowerHDC1/4HPFlexing grips12 setsHeight of fallNot less than 1200mmNet weight190KGVolume75×85×163cmRelated ProductsOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us Lily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype1933039910@qq.comWechat+86 180 5517 3820
>>
