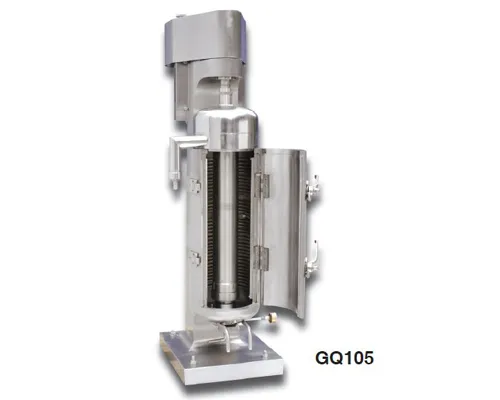

Gq Vertical Tubular Centrifuge for The Clarification of Coffee Wine Yeast

Product Description

Product Description
The yeast microorganisms are concentrated or collected by high-speed centrifugation. The subsequent process depends on the temperature tolerance of the bacteria. In order to improve the collection rate of the bacteria and ensure the activity of the bacteria, a cooling device can be added inside the separator body, and the bacteria separator drum check valve can be used inside to prevent bacteria from being contaminated. The drum is lined with a device to collect bacteria more conveniently.
Application:
The separator can also be used to separate other bacteria, such as:
Escherichia coli, Bacillus licheniformis, Bacillus subtilis, Lactobacillus, Streptococcus, Actinomycetes, Leuconostoc, Lactobacillus acidophilus, Bifidobacterium longum, Bifidobacterium breve, Bifidobacterium ovale, Bifidobacterium thermophilus, Streptococcus faecalis, Lactococcus, Intermediate Streptococcus, Yeast, Lactobacillus casei, Lactobacillus jannaschii, Lactobacillus ramani, photosynthetic bacteria, Bulgarian bacteria, protein recovery, cell collection and concentration, broken yeast, etc.
Working principle of Tubular Separator
Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator. The upper drum is a flexible shaft, while the lower is damping floating bearing. The main shaft is connected by a coupling buffer and a passive wheel. Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field. All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid. During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring, which separately flow to respective liquid outlet mounted on the upper drum.
When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown Product Paramenters

Item		GQ/GF75	GQ/GF105	GQ/GF125		GQ/GF150
Drum	ID(mm)	75	105	125		147
	Height (mm)	450	730	730		730
	Sedimentation volume(L)	2.67	6	8		10
	Max speed(r/min)	21000	17500	16500		15800
	Max separation factor	22500	18500	17300		16800
	Inlet nozzle diameter (mm)	3/4/6	4/6/8	6/8/10		8/10/12
	Material inlet pressure (Mpa)	≥0.05
	Capacity (water capacity)L/H	670	1600	2200		3200
	Actually Capacity L/H(according to the solid content)	50-80	100-200	200-300		300-700
Motor model		3 phase two pole motor
Motor power (kw)		1.5	2.2		3		3
Machine dimension (mm)		500*700*1300	600*1000*1600		600*1000*1600		600*1000*1600
Machine weight (kg)		300	460		490		510

Details Images
PRODUCT PACKAGING
Company Profile
Reyes Import & Export Co., Ltd. belongs to REYES international Group. We are the professional manufacturer of Centrifuge & Separator, Liquid Filling Machine and packing machine. With many years producing experience, our factory have become leading manufacturer with professional technical team and Independent after-sale department.
Our international trade department can supply the whole project service. With many years development, we have known which factories have strong product with competitive price and we have built long-term and stable cooperation relationship with them. Our main area are the food and pharmacy project. Our successful project are coconut oil production line, liquid filling production line, packing production line and the tablet press production line, soft gelatin production line and so on. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country: At present, our products have been exported to South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, the United States, Canada, Australia, Spain, Japan, Colombia, Romania and so on more than 30 countries
FAQ
1. What certificates do you have? We can provide CE, ISO 9001, etc
2. What is the warranty period of the equipment? Normally 1 year warranty. 3. Can we visit your factory? Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by telephone video conference. 4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc 5. Can it be customized? Of course, our equipment can be customized according to the actual requirements of customers.
Our service
The technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories , and deal with technical and quality issues.
3. Our products with 1 years' warranty and life maintenance.
4. Once receive the customer complaints, we will response within 24 hours.
5. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
6. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
7. Our company will provide perfect after-sale services and technical support.
Contact person: Cathy
Once receive the calling of complaints, we will respond to it within 12 hours at working time and provide solution within 48 hours. If necessary, our company will send technical staff there and provide on-site solution.

---
