Product Description
Product Description

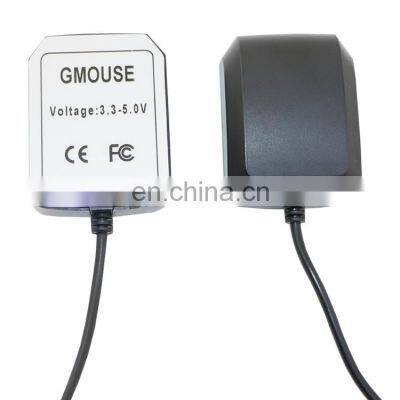

DescriptionKindly Reminder-The GPS Receiver Module we are going to ship is based on the below default. -For your customized requirements on the GPS receiver module, like connector type, pin assignment, cable length, main chip, baud rate, ect, please kindly contact us before purchasing.Place of OriginGuangdong, ChinaModel NumberHR-168UB8TypeGps ReceiverInterfaceMolex, PS2, RS232, USB, Audio,ectCommunication TypeUART/TTL or RS232Main ChipUBX-M8030 GPS/GNSSIntegratedTCXO,LNA,SAW,RTCProtocolNMEA-0183Baud Rate9600bps by defaultMountingAdhesive or MagneticCable Length1.5 Meter by defaultDimension50 x 38.8 x 17.1mmWarranty:1 Years1. The GPS receiver module default is as below:• Molex interface (with PS2, DC, ect Optional)• RS232 (with UART/ TTL Optional)• Magnetic Mounting (with Adhesive Mounting Optional)• Strong Shield (with Waterproof Shield Optional) • UBX-M8030 high performance GPS/GNSS Chips• Cable Length 1.5 meter2. The GPS receiver module options:• Interface: Molex, PS2, RS232, USB, Audio, HDMI, ect• Communication Type: UART/ TTL (with RS232 optional)• Mounting: Magnetic or Adhesive • Strong Shield (with Waterproof Shield Optional) • UBX-M8030 high performance GPS/GNSS Chips (chip customized)• Cable Length 1.5 meter by default (customized)3. Applications• Handheld GPS receiver application• Automotive application• Ideal for PDA, Pocket PC• Car navigation and tracking• Geographic Surveying• AVL and Location-Based Services• Sports and Recreation• Timing application• Marine Navigation, Fleet Management• UAV (Unmanned Aerial Vehicle )4. Product DescriptionFeaturing a single die solution, low power consumption and low costs, the HR-168UB8 are multi-GNSS (GPS, BeiDou , GLONASS ,SBAS and QZSS) positioning Module developed to meet the requirements of an extensive range of applications and end-products. Based on the high-performance UBX-M8030 position engine, these receivers provide exceptional sensitivity and acquisition times and interference suppression measures enable reliable positioning even in difficult signal conditions.5. Product Features• UBX-M8030 high performance GPS/GNSS Chips:• over 2 million effective correlators• 72 channels in Search mode• cold start acquisition sensitivity of -148 dBm and -167 dBm tracking sensitivity• up to 10 Hz navigation update rate• Supports GPS, QZSS, GLONASS , BeiDou and is ready for Galileo• Supports AGPS• Integrated TCXO,LNA,SAW,RTC• Compact size (50mm x 38.8mm x 17.1mm) suitable for space-sensitive application• Support standard NMEA 0183, version 2.3 and 4.1,UBX,RTCMWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
