RFID Tag Antenna Screen Printer

Product Description

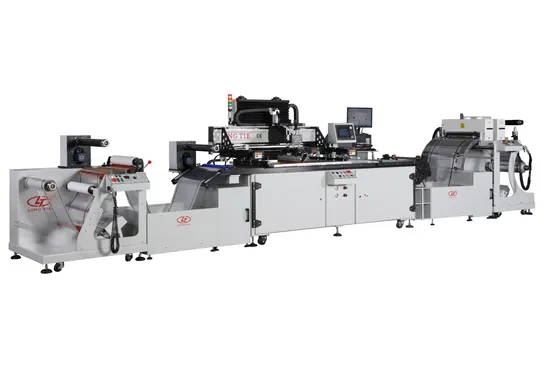

RFID tag antenna screen printer
Machine Description:
This machine is used to print RFID antenna on PET film in roll form.
It is an automatic printing line composed of a feeder, a printing unit and a hot air dryer, UV dryer is available for option.
The machine is equipped an automatic register system with 3 sensors, it ensures the machine capable of doing overprint in high accuracy.
Making the antenna by screen will not cause pollution to water.
Automatic roll to roll silk screen printing machine includes a feeder, a screen printing unit and a hot air dryer.
Application: RFID, heat transfer films, labels and stickers, membrane switches, graphic overlay, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplate and non-woven fabrics, etc.
Machine Parameters:

Model			LTA-3040		LTA-5060		LTA-6080
Max. Printing Size			300x400mm		500x600mm		600x800mm
Printing Speed			0~5000 print/hr.		0~2500 print/hr.		0~2500 print/hr.
Max. Screen Frame Size			600x800mm		800x1000mm		900x1200mm
Frame Adjusting Variable			60mm		60mm		60mm
Max. Substrate Width			320mm		520mm		620mm
Registration Accuracy			±0.01mm		±0.01mm		±0.01mm
Air Source			0.4~0.6mpa		0.4~0.6mpa		0.4~0.6mpa
Power			220V, 3KW, 15A		220V, 3KW, 15A		220V, 3KW, 15A
Printing Material Thickness			0.02~0.5mm		0.02~0.5mm		0.02~0.5mm
Weight			600kgs		700kgs		950kgs
Overall Dimensions (L*W*H)			7000x1100x1900mm		8200x1200x2000mm		9000x1350x2200mm

Machine Photos:
Vacuum table: fix the PET film during printing process. Automatic register system for screen alignment.
Feeder: dust removing, protect film removing, electrostatic eliminating,etc.
Inspection station: Timely inspection of printing quality to avoid waste.
Print Head: Good stability, ensure long time use of the machine.
Rewinding Shaft: After printing, through the tunnel oven drying, automatic rewinding at last.
Printed Samples:

---
