Tire Changer Wheel Balancer Hydraulic Car Lift Car Parking Lift Bridge 220V Pneumatic Portable Car Lift Mobile Single Column Car Lift 1 Post Car Lift

Product Description

Product Description

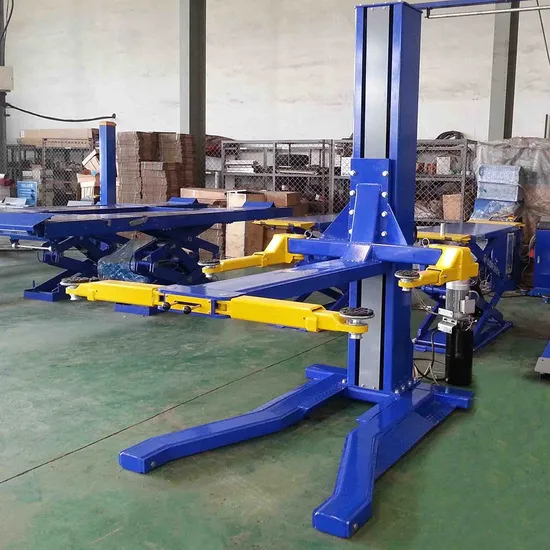

Feature 1. Mobile Single Post Lift-Electrical Release. 2. Swing lifting arms design,easy to operate. 3. Screw-up lifting pads with easy to test and locate support points. 4. Standard aluminum motor avoids overheated and ensures long service life. 5. ABS control box with rubber gasket sealing,water-resistant and prevent electric leakage; 24Volt safety control operation system. 6. Surface shot blasting process, electrostatic powder spraying, strong surface adhesion and durable powder coating. 7. It has adopted 115%dynamic load capacity and 150% static loadcapacity test. 8. CE certificated.
Specification

Max Lifting Capacity	5000KG(Optional)
Max Lifting Height	1900mm(Optional)
Min Lifting Height	90mm(Optional)
Lifting Time	About 50s(Adjustable)
Lowing time	About 40s(Adjustable)
Overrall Width	1625mm (Optional)
Overall Height	2604mm (Optional)
Weight	960kg
Motor Power	2.2KW/3KW
Power Supply	110V/220V/240V/380V/415V
Locking System	Electrical Lock Release/ Manual Lock Release
Warrannty	15 Months
Certificate	CE/ ISO9001

Our Advantages
1. Our lift carriage is neither pipe type, and nor thin steel plate with welding. It is made by 15.69mm thickness one piece bending as a whole, which provides stronger support than welding and does not result in deformation. 2. Our arms are fixed in the middle of the carriage, while the arms of other lifts are fixed outside the carriage. This strengthen structure make sure the arm has a higher bearing capacity in comparison to other models available in market.
1. Our lock is bolted to the carriage, once the lock is broken, it can be easily replaced hence saving time, efficiency and cost. Other lift's lock is thin and weak and is welded on the carriage. Once the lock teeth are broken, you have to replace the whole arm, which causes loss of time and higher costs. 2. Our gear lock is intensive to ensure more safety, other lift's is loose and small, and small contact area is not safe. Our shaft of the arm lever diameter is 40mm, but other lift's is 34mm, which is cheap, weak, small and can not ensure safety.
17pcs intensive safety locks for every position, but other lift's is less, which is cheap and not safe enough.
We use higher grade galvanized expansion anchor bolt than other brands.
Detailed Photos
Company Profile
Shenyang Three Horses Technology Co., Ltd is committed to building China's largest and highest-quality semi-trailer and vehicle equipment manufacturer. Our company has a total investment of 420 million RMB and covers an area of 360 acres.
We produce more than 10 types of semi-trailers such as tipper trailers, container trailers, dry van
trailers, lowbed trailers, concrete trailers, car trailers, farm trailers and boat trailers. We also provide 4 types of car lifts: scissor car lifts, single-post car lifts, 2 post car lifts, 4 post car lifts. Why Choose Us ?
Pre-sales service. 1. Actively communicate with customers to understand their real needs. 2. Collect market information carefully and share it with partners at the same time. 3. Any inquiry will be taken seriously. Any questions will be answered objectively. 4. Customers will be accompanied and our factory and office will be introduced. 5. We have product technical features online communication, guidance and training staff. 6. Professional sales consultants will serve you one-on-one. After-sales service. 1. Once the contract is signed, a person will be responsible for production, quality inspection, packaging, delivery and other related procedures to ensure that the goods meet the requirements of customers in terms of quality and delivery time. 2. Guarantee spare parts and their delivery time. 3. After arrival, you can check the quality of goods and after-sales service at the first time, if there is damage, shortage or other problems can be solved. 4. We welcome your feedback on our shortcomings! We will improve our products according to your suggestions. FAQ
About Order Q1: What is your lead time? The delivery time will be determined according to the quantity of the order, usually 30days. Q2: What is the MOQ of your product? 1 unit Q3: Is OEM available? Yes, we offer customized services according to your requests. Q4: What is your payment terms? <$10,000, 100% in advance (T/T or credit card) <$30,000, 30% advance and 70% balance before delivery.
About Product 1. How is Three Horses product quality? All of our equipments and tools meet CE standards and also meet the Australia and America rules. 2. Does my car lift come with the necessary anchor bolts andl hardware to mount it to the floor? All Three Horses car lifts ship with the necessary anchors required for mounting the unit to your floor. 3. Does hydraulic fluid come with the car lifts? Due to current DOT and insurance laws regarding the transport of hydraulic oils (DOT Section 1 -Hazardous Ingredients; DOT Section 2 - Fire and Explosion Hazards and DOT Section 3 - Health Hazards) the required hydraulic fluid is to be supplied by the end-user, only. Three Horses car lifts are designed to operate using standard 10-weight, non-foaming, non-detergent hydraulic oil or Dexron-IlATF fluid. It is available at most auto stores. 4. Do l need a special floor or foundation to support my new car lift? Most residential or commercial foundations are strong enough to support Three Horses car lifts. However, it is important to adhere to concrete specifications. A level floor is suggested for proper installation and level lifting. With proper shimming, small differences in floor slopes may be compensated for. lf a floor is of unstable slope, consider a survey of the site or the possibility of pouring a new level concrete slab.

---
