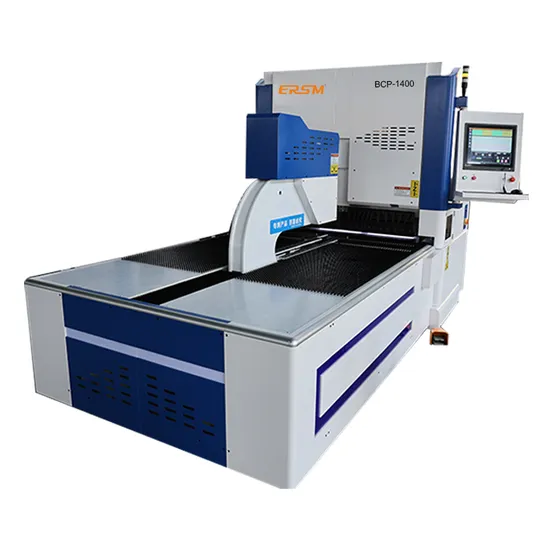

Long Life Proprietary Bending Formula Universal Bending Die Smart Flexible Panel Bander

Product Description

Produce Features
· Suitable for a variety of bending material (carbon steel, 304 stainless steel, 201 stainless steel, aluminum plate, coated sheet, etc.)
· Full servo control, low energy consumption. Servo-based torque feedback system.
· Muliti-axis linkage control, with a high degree of automation.
· Various feeding and discharging methods (Labour, Robotic arm, Gantry robot, Conveying platform, etc.)
· C-type pressure arm, lead screw multi-link transmission mechanism, pressure adjustment system.
· Easy programming. Operator can customize the design and control of complex sheets according to their needs.
· Flatten hem instructions, press the edge up or down. Arc command, only need input the radius to realize the bending of the arc.
· Three-axis fully automatic positioning system.Multiple positioning.
Product Parameters

Model		BCP-1400-1.2	BCP-1400-1.5	BCP-1400-2.0
Feeding Structure		Pressure arm type
Max. Bending Length		1400mm
Max. Bending Size		1400*1250mm
Max. Thickness	Stainless Steel(SS)	1.0mm	0.8mm	1.5mm
	Carbon Steel (MS)	1.2mm	1.5mm	2.0mm
	Aluminum(AL)	2.5mm	2.5mm	3.5mm
Max. Bending Height		170mm(Customized)
Min. Bending Height		4mm	8mm	8mm
Min. Inner Size of Four-side Bending		110*140mm	160*240mm	160*240mm
Min. Inner size of One-side Bending		110mm	160mm	160mm
Min. Arc Radius		1.2mm	2mm	2mm
Min. Continuous Bending Speed		0.2s	0.5s	0.5s
Bending Angle		-90°-90°, >0.8mm	-90°-90°, >0.8mm	-90°-90°, >1.5mm
		0-180°, ≤0.8mm	0-180°, ≤0.8mm	0-180°, ≤1.5mm
Axis		9	15	15
Maximum Feeding Speed		120m/min
Equipment Size		4563*2600*2480mm
Total Power		20KW	28KW	48KW
Average Power		3.5KW	4.5KW	4.5KW
Workbench Structure		Brush and universal ball
Weight		11T	11T	11T
