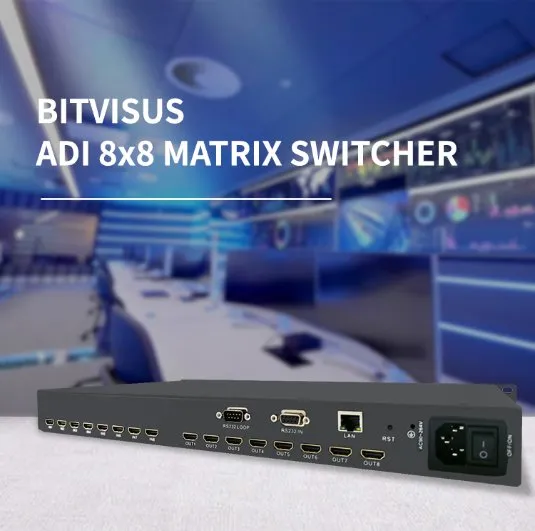

Factory Price Wholesale IR Control 8X8 Output Hdm I Matrix Switchers Video Matrix

Product Description

Product Description

Product Details 1,Support 9HDMI video inputs and cross switching of9 HDMI video outputs.2,Support the highest resolution 4K x 2K,support 3D video.3,The front panel LCD shows the real-time feedback status. If there is no operation for a long time,the display automatically enters the sleep low power state.4,Supports HDMI 1.4 protocol, HDCP1.4 protocol, and 3D TV, compatible with DVT 1.0 protocol.5,Multiple control methods: keypad operation, RS-232, TCP / IP.6,Flexible EDID reading mechanism to solve various connection compatibility issues.7,Integrated multiple control protocols, convenient and quick to use with various central control equipment.8,Product firmware can be upgraded on-site through the network port, which can easily provide remote support on site and customization of special functions for users.9,Built-in equalizer up to 100 feetat input and 50 feetat output.10,Powerful storage function, can store and recall multiple pre-stored switching modes; has power-down memory function, with power-off site protection function.11, Standard 1U industrial chassis, easy installation, fast operation, support 7X12 hours of uninterrupted work, support AC power in the range of 90-264V.
Specification

model	BIT-Ma-ADI-0909
Specification	Input / output support 9 channels each
Input signal	Full digital HDMI signal
Output signal	Full digital HDMI signal
Control method	RS-232,TCP/IP
Support resolution	The highest resolution can reach 4k x 2k (4096 × 2160)
HDMI version	HDMI 1.4 with 3D TV support
Digital content protection	Compatible with HDCP 1.4
Hot plug	Plug and play, easy to install, support hot plug
Input line length	Built-in equalizer at input up to 100 feet
Output line length	≤50 feet
Input / Output interface type	HDMI Interface Type A 19-pin Female
External power	110~220 VAC
Working environment	Storage and use temperature: -20 ° ~ + 70 ° C humidity: 10% ~ 90%
Product weight	4KG
Rated power	22W
Chassis size (WxDxH)	1U(440mm x 263mm x 44mm)
Warranty	1 year free warranty and lifetime maintenance

Company Profile

FAQ 1. who are we?We are based in Guangdong, China, start from 2018,sell to North America(30.00%),Domestic Market(30.00%),Southeast Asia(20.00%),Mid East(10.00%),Northern Europe(10.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?TV Video Wall Controller,HDMI Extender,HDMI Matrix Switcher,Multi Viewer,HDMI Fiber Cable4. why should you buy from us not from other suppliers?Bitvisus has a strong R&D team,with more than 10 experienced engineers working here.Most of the core backbones come from leading companies in the industry such as Huawei,ZTE,Xilinx,etc.With more than 15 years of rich experience in the audio&video industry.5. what services can we provide?Accepted Delivery Terms: FOB,EXW,FCA,DDP,Express Delivery,DAF;Accepted Payment Currency:USD,HKD,CNY;Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;Language Spoken:English,Chinese,Spanish,Japanese,French,Russian,Korean

---
