Product Details
Product Description
Product Description

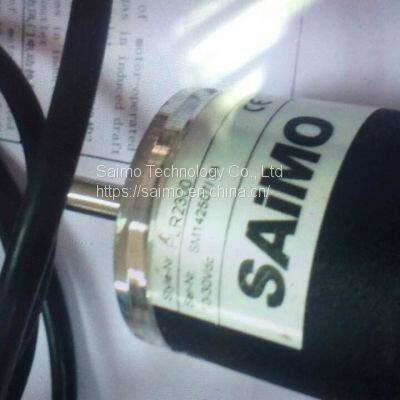

saimo encoder connected to a dedicated speed drum, which can eliminate the usual tachometer friction between the wheel and the belt due to slip caused by the error; cast aluminum shell, has good shielding, closed performance, suitable for outdoor installation; Carbon brush pulse generator, without adjustment, calibration, no maintenance; the latest soft-connection technology, more effectively protect the speed accuracy, and greatly improve the equipment life.
Technical parameters:
Ambient temperature: -20 ℃ ~ 60 ℃
Relative humidity: ≤95 hollow shaft diameter: 6/8
Output voltage: 0.5 ~ 30VAC starting torque: 1 × 102
Construction: Dust
Weight: 2Kg
Features:
Installation is easy and safe
Robust mechanical structure
Resolution up to 2048 pulses / revolution
A variety of electrical signal output
Power supply up to 30VDC
Output frequency up to 100KHz
The maximum speed of up to 3000RPM
Protection class IP54
ELECTRICAL CHARACTERISTICS
Resolution 1-2048 pulses / revolution
Power supply 5-30,
No load input current 100ma max
The maximum current of each channel 50ma
Electrical signal output push-pull, long-term drive
Output frequency 100KHz
PLR2300 shaft encoder series
Shaft diameter 6mm Overall size 38mm
Features:
Installation is easy and safe
Robust mechanical structure
Resolution up to 2048 pulses / revolution
A variety of electrical signal output
Power supply up to 30VDC
Output frequency up to 100KHz
The maximum speed of up to 3000RPM
Protection class IP54
ELECTRICAL CHARACTERISTICS
Resolution 1-2048 pulses / revolution
Power supply 5-30,
No load input current 100ma max
The maximum current of each channel 50ma
Electrical signal output push-pull, long-term drive
Output frequency 100KHz
Saimo Technology Co., Ltd
2# Luoshan Road, Xuzhou Economic Zone,
Jiangsu province, P.R of China
Mobile: 18061139050
wechat:396914510
Website：
Email: zouli@saimogroup.com
>>
