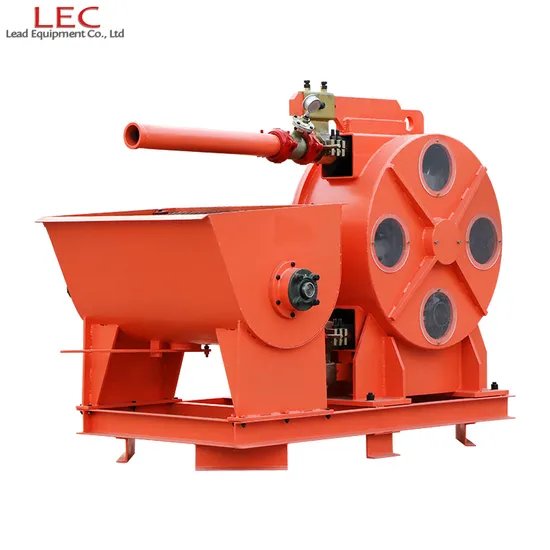

LCP20h-H Hose Type Concrete Pump for Pumping Refractory Materials

Product Description

LCP20H-H hose type concrete pump for pumping refractory materials

Product Description:
LCP20H-H hose type concrete pump was designed based on the squeeze hose pump, this concrete pump uses high pressure, resisting wear squeeze concrete hose with steel wire reinforcement layers, the working pressure is up to 25 bars. More widely used for pumping concrete, lightweight foam concrete, mortar and refractory materials. The concrete pump also could be used for spraying concrete or refractory materials.
Product Feature:
1. Compact size: hose pump, agitator and hydraulic motor gearbox combined in a base frame.
2. Hydraulic motor: stepless speed control, connect with own hydraulic power pack could work directly, easy to operate
3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly
4. Delivers even the most difficult materials
5. Quiet pumping process
6. Forwards and reverse, easily to removal the block.
7. Clean on the line: Quick and easy cleaning
8. No residual concrete remains in the system
Product Specification:

Description	Parameter
Model	LCP20H-H
Overall Dimension	2000x1350x1500mm
Weight	1145kg
Pump Head
Hose Pump	LH76-915B
Squeeze Hose ID	76mm (Trelleborg Squeeze hose)
Pump Speed	40rpm
Rated Output	20m3/h
Pressure	2.5Mpa
Max. Aggregate size	<15mm
Concrete Slump	15-23cm
Heavy Duty Hydraulic Motor Gearbox
Required flow	130L/min
Required pressure	10Mpa
Hydraulic Mixing Motor
Model	BMH200-4-B-D
Required flow	10L/min
Required pressure	10Mpa
Hopper Capacity	400L

Detail Part:
Accessories:
Application:
Delivers even the most difficult materials
Delivers even the most difficult of materials: steel
fibre concrete, broken material, screed, foamed
concrete, fluid concrete, lightweight concrete up to a particle distribution of 20 mm.
Even pumps broken material, if this has a good share of fines in the concrete mix
Packing&Shipping:

Company Information:

---
