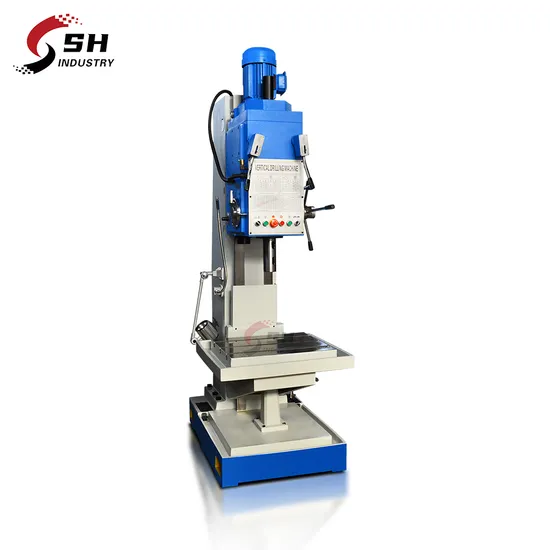

Stand Upright Drill Machine Price Z5150 Metal Hole Vertical Drilling Machine

Product Description

Stand Upright Drill Machine Price Z5150 Metal Hole Vertical Drilling Machine
Product Description
Description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Main technical specifications:

Specifications	Z5150
Max drilling dia	50mm
Spindle taper	MT5
Spindle stroke	250mm
Headstock travel(manual)	200mm
Spindle speeds	31.5-1400r/min 12 steps
Feed range	0.056-1.80mm/r 9 steps
Table size	560x480mm
Table vertical travel	300mm
Max.distance spindle nose to table	750mm
Main motor power	3kw
Overall dimension	1090*905*2465mm
N/W	1350kg

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
