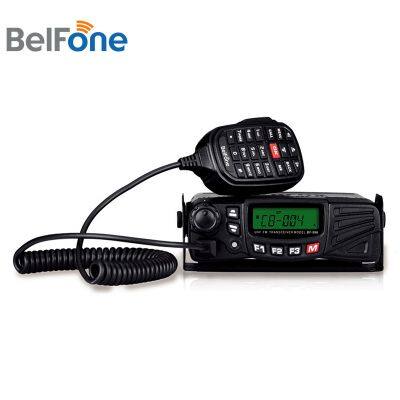

Belfone 25W UHF Vehicle Mounted Analog Mobile Radio for Car (BF-998)

Product Details

Product Description

Product Description
BF-998 mobile radio
Frequency range UHF: 400-470
Channels: 128
Channel space: 25KHz/ 12.5KHz
Operatin temperature: -20ºC ~+ 60ºC
Antenna impedance: 50Ω
Working Voltage: 13.8V (±15%)
Working current: TX <8A, RX <1A,
Standby <0.4A
Frequency stability:≤±2.5ppm
Dimension: 158 (L) * 152 (W) * 50 (H) mm .
Weight: 1.04kg
BF-998 is one analog mobile radio with high power output, using ABS + PC shell material, equipped with scientific combination function keys and high-definition LCD display, making the communication more efficient and convenient, suitable for all kinds of vehicle communication environment. Square matrix hand microphone gives you clear voice, with DTMF signaling and remote kill, stun, manual dialing functions, it is worthy of trust for logistics, vehicle, and so on.
Product Parameters

Transmitter		Receiver
Power Output	H:25W M:15W L:5W	Sensitivity	≤0.2uV(width)/0.25uV(narrow)
Modulated mode	16K0F3E(width) 8K5F3E(narrow)	Adjacent channel seletivity	≥60dB(width)/55dB(narrow)
Spurious emissions	≤-36dBm	Intermodulation rejection	≥60dB(width)/55dB(narrow)
FM noise	≤-40dB	Spurious response rejection	≥60dB(width)/55dB(narrow)
Audio distortion	≤5%	Audio output power	2W(inter) 8W(outside)
Adjacent Power	≥65(width)/60dB(narrow)	Audio distortion	≤5%
Modulated limitation	≤5KHz(width)/2.5KHz(narrow)

---
