Mkfe-095 Efficient Economic Liquid Glucose Concentration Machine Glucose Processing

Product Description

MKFE-095 Efficient Economic Liquid Glucose Concentration Machine,
Multiple-effect film-falling evaporator concentrates!!!
Packaging Details: Sea carry available packing
Delivery Detail: 2-3 months after received down payment

BRIEF INTRODUCTION

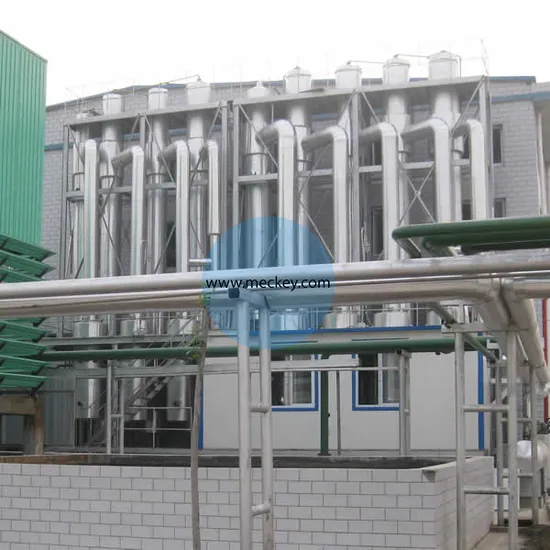

Multiple-effect film-falling evaporator concentrates the solution by means of vaporizing the thin solution through film-falling principle. It introduces continuous production and it features in high concentration ratio (1/5-1/10), large viscosity scope (400CP), good heat-transferring effect, large processing capacity, etc. In this case, it can be introduced on vaporizing materials which are of high heat sensibility, high concentration, high viscosity, and corrosive characteristics. Therefore, it is widely used for concentrating corn slurry, glucose and maltose in starch industry, juice and MSG liquid in food industry, milk liquid in dairy industry, as well as lees filtrate in alcohol industry.

This equipment is of higher heat-transferring ratio, so the heat difference requested is small. It can be combined into double, triple, quadruple, or quintuple-effect evaporating system on the basis of different materials characteristics and evaporating results. It can be used as waste-heat evaporator with the resources of waste steam from bundle dryer, disc dryer or other heat resources with low thermal value such as condensate steam. Raw steam consumption can be greatly reduced for energy saving. It is economically beneficial when waste steam can be completely used and raw steam is saved.
Main specifications and technical parameters

	MFE-3	MFE-4.5	MFE-6	MFE-9	MFE-12	MFE-15	MFE-20
Evaporation (Kg/h)	2500-3000	4000-4500	5000-6000	6000-9000	9000-12000	12000-15000	15000-20000
Raw Steam Consumption (Kg/h)	900	1150	1500	1900	3200	3600	4200
Current Vacuum Degree (MPa)
1st Effect	780
2nd Effect	300
3rd Effect	120
Temperature (°c)
1st Effect	96
2nd Effect	74
3rd Effect	51
Steam Pressure (MPa)	0.6-1.0 (absolute pressure)
Inlet DS Content (%)	25-28%
Outlet DS Content (%)	72-79%

More info pls feel freely to contact with our team!
FAQ
1. Q: If I want to know the price, what info should I provide?
A: You should inform us some basic info , such as: raw material, filter area or input capacity.
2. Q: If I already have a production line, can I add some machines to increase the capacity?
A: That's viable, pls contact us and we can help you find a suitable solution.
3. Q: How about the automatic level?
A: Depens on you, we have manual/ semi-automatic/ full-automatic control.
4. Q: How about the installation and commissioning?
A: We can send our engineers abroad for the supervision.
5. Q:What's the brand of your equipments?
A: Most of them are made in China with high-quality.
COMPANY PHILOSOPHY
C-Credit: We promise only what we can do to do our customers and keep our promise.
E-Efficient: Our work is efficient based on our qualified staff and company's standard working
process.
E-Exact: We study your requirements and supply exact solutions to you.
S-Standard: We have standard systems to guarantee our activities to be complied with
international ones.
WE ARE WHERE YOU ARE
By choosing MecKey you are choosing the perfect long-term parter for your daily operation. Our
service network can reach you wherever you are.
You can download brochures if you have such demand.
If you have any doubts, please do not hesitate to contact us.
Welcome to contact us for more details.
Welcome to Contact US!
Beijing Meckey Engineering Co.
Website: cnmeckey.en.made-in-china.com
Add: Bldg.5-1511, No. 10 Ronghua south road, BDA, Beijing

---
