Disposable Surgical Face Mask Making Machine

Product Description

disposable surgical face mask making machine

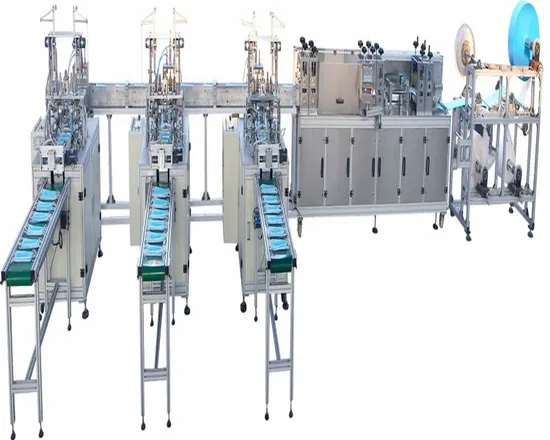

ALT-AUTO175 -3 Face Mask Machine
FUNCTION:
ALT-AUTO175 is a unit of fully automatic ear-loop mask making machine. This machine unify 1 unitALT-175 and 3 units ALT-WD175 by a unit of automated dispenser.
Mask bodies produced on mother machine can be allocated onto 3 units child machine averagely by PLC at the speed of 120-150 pieces per minute. All of operation of the machine
is controlled through touch screen, the interface of man and machine.
On this combination the mask body machine can match with 1/2/3/4units of ear-loop, machine
FEATURES:
The machine is made of aluminum alloy which makes it beautiful, prevented from rust and has a small size.
The machine can make the 1--3 levels mask blank according for the customer's require with a high output;
You can adjust the size of the mask blank and the folding location;
The direction of the ear loop is outside;
Compared with sub-mask production equipment, this set of equipment more efficient, more economical artificial;
The computer program control and photoelectric detection make it have a high reliability and low failure rate;
SPECIFICATION:
Machine size: 11000*3500*1700mm
speed:0-150pcs/min
power supply: 220V or 380V, 1 or 3 phase
Atmospheric pressure:6kg/cm2(minimum)
Power consumption: 14KW
Weight:2500kg
: INSTRUCTIONS:

No	Item	Quantity
1	Ultrasonic	8sets(Shangrong)
2	Motor	1set TaiWan "YongKun"
3	Servo motor	4sets (Delta)
4	Inverter	1set TaiWan "Sunfar"
5	PLC	1set Japan "Mitsubishi"
		2sets (Inovance )
6	Touch screen	1 set TaiWan "Wei- Lun"
7	Transport motor	5sets
8	Static eliminator	2sets(Guangdong)
9	Cylinder	New Christine and AirTAC
10	Constant Tension System	four sets
11	Conveyor	2 sets
12	Bearing	NSK
13	Frame:	Aluminum
14	Closure plate	stainless steel
15	Reducer	3sets

Payment: After 30% of the total value is paid in advance by (T/T),
The left 70% should be paid by (T/T) after you check up the finished
machine. And the cargo will be delivered after all the payment
arrives at our account.
Delivered time: 60days after confirm the order
Warrant term: 1 year
Package:Wooden Packing
Installation and test: The buyer should pay the round tickets, visa fee, food and accommodation in your country and our engineers $100 per day if you need our training and installation abroad.

---
