Thickness 0.05mm to 0.3mm Copper Tape for Wires and Cables

US$1.98-20.00 1,000 Meters (MOQ)

Basic Info.

Model NO.
copper
Usage
Optical Fiber Cable, Data Cable, Telecom Cable
Waterproof
Waterproof
Color
Yellow
Thickness
0.05mm-0.3mm
Tensile Strength
More Than 180MPa
Elongation at Break
More Than 12%
Hardness
Hv 45-70
Cu+AG%
More Than 99.9%
Fe%
More Than 0.005
P%
More Than 0.003
Transport Package
Wooden Package
Specification
Customized
Trademark
Reliable
Origin
China

Packaging & Delivery

Package Size
1000.00cm * 10.00cm * 0.04cm
Package Gross Weight
20.000kg

Product Description

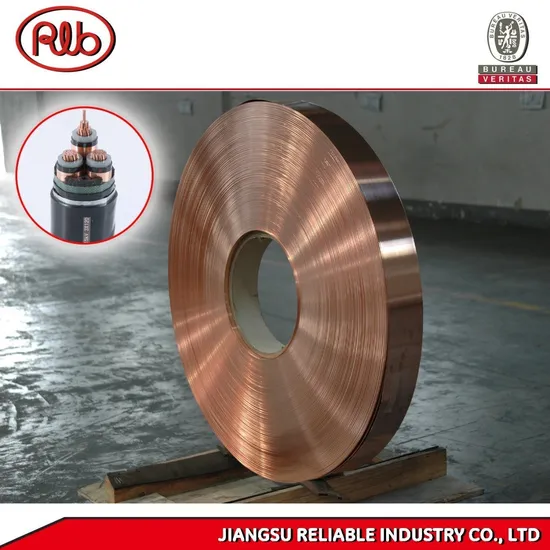

1,Product: Copper Tape
1,Application:
It is widely used in the shielding layer of power cable.
2,Standard:
GB/T 2059-2000 BS EN 13599:2014
3,Package:
In coil and several coils in plywood box.
4,Technical Parameter:
Thickness Width Tensile Strength Elongation
at break		 Resistivity
Max		 Hardness Grade
mm mm Min MPA Min % Ω*mm2/m HV
100%IACS 98%IACS
0.05-0.09 ±0.004 10-100 180 12 0.017241 0.017593 45-70 T2
0.10-0.20 ±0.005 180 18 0.017241 0.017593 45-70 T2
0.20-0.3 ±0.01 180 25 0.017241 0.017593 45-70 T2
Chemical Composite Cu+Ag% Fe% P%
≥99.9 ≤0.005 ≤0.003
