Welcome to visit

Warehouse Density Gravity Pallet Racks

US$0.90-1.40 5,000 kg (MOQ)

Basic Info.

Model NO.
URGO-20220661
Structure
Rack
Type
Pallet Racking
Mobility
Adjustable
Height
3-12m
Weight
500-4000kg
Closed
Open
Development
New Type
Serviceability
Common Use
Surface Treatment
Powder Coating
Feature
Corrosion Protection
Certification
CE
Transport Package
Exported Packing
Specification
customized
Trademark
URGO
Origin
Nanjing
HS Code
73089000
Production Capacity
80000tons/Year

Product Description

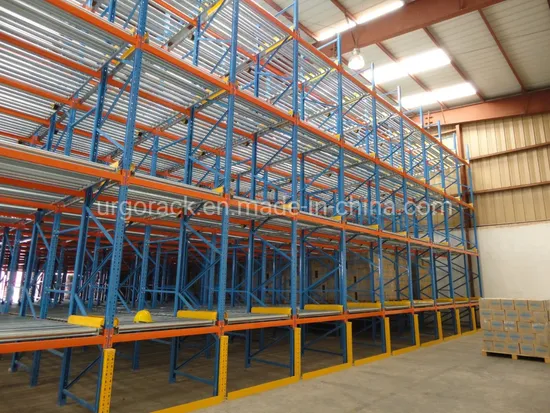

URGO Gravity Pallet Racking is ideal for situations where strict FIFO(First In First Out Solution) is required and it is also popular. When pallets need to be moved quickly from one area to another, without the assistance of lift trucks.
Features: 1. Reduced warehouse cost;
2. Easy,efficient goods loading and unloading;
3. First In First Out(FIFO) pallet goods storage;
4. Heavy duty long life construction;
5. Reduced aisie space by 60-70%;
6. Increased warehouse utilization and space savings;
7. Reduced forklift damage ad pallet or carton flows to the operator or unloading area.
Column Profiles:
Column Specification (mm) Thickness (mm) Upright Loading (kg)
W80 x D60 1.8-2.0 4000-6000 KG
W85 x D67 1.8-2.3 7500-12500 KG
W90 x D60 1.8-2.5 8000-10000 KG
W90 x D70 1.8-2.5 10000-12000 KG
W100 x D70 2.0-2.5 11000-14000 KG
W120 x D95 2.3-3.0 17000-21000KG
Beam Profiles:
Loading (kg)
Specification (mm)
The Length of Box Beam (mm)
1500 2000 2300 2500 2700 3000 3300 3600 3900
80 x 50 x 1.5 3000 1740 1340 1160 1010
90 x 50 x 1.5 4080 2350 1800 1645 1345 1010 850
100 x 50 1.5 2960 2260 1930 1680 1380 1040
110 x 50 x 1.5 2640 2250 1950 1600 1340 1140
120 x 50 x 1.5 3200 2730 2358 1930 1518 1379
140 x 50 x 1.5 3868 3330 2720 2370 2020
160 x 50 x 1.5 4220 3690 2970 2600 2340
160 x 50 x 1.8 4400 3420 3020 2590
160 x 50 x 2.0 4130 4170 3320 2840
Loading (kg)
Specification (mm)
The Length of P Box Beam (mm)
1500 2000 2300 2500 2700 3000 3300 3600 3900
100 x 50 x 1.5 4470 2512 1900 1610 1380 1120 920
110 x 50 x 1.5 5484 3085 2332 1974 1693 1371 1133 952
120 x 50 x 1.5 3910 2957 2503 2146 1738 1436 1207 1030
140 x 50 x 1.5 5722 4330 3662 3140 2543 2102 1766 1505

Packaging and shiping Frequent Question Answer
1. Q: What makes you different with other suppliers?
A: 1) Our excellent service For a quick, no hassle quote just send email to us. We promise to reply with a price within 12 hours
2) Our quick manufacturing time
For selective pallet racking orders, we will promise to produce within 15 days. As a manufactory we can essure the delivery time according to the formal contract.
3) Our special export designWe pay very much attention to the export packages. We have plastic clips on the beams to protect the beams
from surface damage in the transportation, We have got thewhole uprights wrapped with transparent plastic film.
4) Our warranty time
The high standards in the design and manufacturing ensure us to support the products with a 10 years warranty time for your normal use, it is the longest manufacturer's warranty !
2. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
3. Q: Are samples available?
A: Yes, we can send some sections of samples for your reference by express.
4. Q: Is Galvanised Finish available for pallet racks?
A: Yes. Pallet raking posts and bracings are available with galvanized finish.
5. Q: How can I get your quick quotation on my pallet racking project?
A: As different clients and projects have different needs of racking dimensions and specification, as general, for quick quotation, we need to know the following information:
1) Required Pallet Racking Dimension: Height*Depth*Length?
2) Number of Levels?
3) Loading Capacity of each level?
4) Racking Quantity?
