Automatic PET plastic bottle mineral water bottling machine and production line/plant Ethiopia

Product Description

Product Description

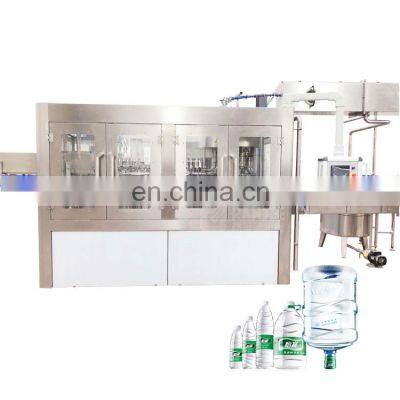

Automatic bottling machine and production line of mineral water
Product Description
Machine description:
1.The mineral water filling machine adopts advanced technology from abroad, and combined with the characteristics of our company, self- developed.
2.It adopts a large number of new technology, new process and new structure. It has top quality.
3.The feature: the neck of the bottle was stuck between the bottle clipping board and upper formed plate, then the star wheel transmission let the … run, and bottles were transported. So that to achieve the three process(washing, filling, sealing).The advantages: low wear rate of bottle, easy changing of bottle model, precise and smooth driving, scientific process flow, etc.
4.Besides, all the parts of the equipment that contact with liquid are made of imported stainless steel or food engineering plastic with wear resistance and ozone proof. Its electric system mostly adopts imported part. With standards food sanitation, stable and reliable property, low failure rate, full automatic control and perfect after-sales service, this kind of machine is popular among the foreign and domestic customers. And it is an ideal equipment for different kinds of beverage manufacturing enterprise.
Features:
1.It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.
2.There is no need to adjust the height of equipments through neck holding tech for bottle transportation. And what is only to change some spare parts.
3.High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
4.By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier. Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
5.High speed and large flow filling valve assures the high filling speed and exact fluid level.
6.Parts contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
7.The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain's height.
8.3-in-1 monoblock is composed of rinser, filler, capper, frame, sealing window, main motor and transferring system, cap unscrambler and electric control system etc.
Main technical parameter:

Model	XGF 8-8-3	XGF 14-12-5	XGF 16-16-6	XGF 18-18-6	XGF 24-24-8	XGF 32-32-10	XGF 40-40-12
Capacity(500ml/BPH)	2000	3000	4000	8000	12000	14000	16000
Suitable bottle shape and size	Both round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mm
Compressed air pressure	0.3-0.7MPa
Bottle washing medium	Sterile water
Washing pressure	0.25MPa
Main motor	1.5	2.2	2.2	2.2	3	5.5	7.5
Dimension(mm)	20001600 2300	22001800 2300	24001900 2300	25002000 2300	27002100 2300	29702260 2700	37802800 2700
Weight(KG)	2000	2500	3000	3500	4500	6500	8500

Machine show:
Washing part
Filling part
Capping part
Electrical configuration
Products conveyor belt
Related products
Company information
Workshop detail
Our team
Our exhibition
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
