Professional Grade Woodworking Engraving Router

Product Description

1.Wood CNC Router
(1) This Wood CNC Router's working size is: 1300x2500x200mm , featuring a vacuum table with a 3 kW water-cooled spindle power, utilizing a vacuum pump to securely hold the mold on the table. This setup is exceptionally convenient for users, eliminating the need for material holders. Simply place the mold on the table, activate the vacuum pump, and start working. However, it may not effectively absorb irregular or uneven molds, such as 3D embossments. This vacuum table CNC router is ideal for users with high-volume production needs, significantly boosting efficiency and saving time and labor compared to aluminum profile wood CNC routers.
We offer customization of the machine's water-cooled spindle power, ranging from 4.5 kW, 5.5 kW, 7.5 kW, or larger, depending on customer requirements. The 3 kW water-cooled spindle is capable of cutting and engraving wood, MDF, acrylic, aluminum, copper, brass, and various other metal and non-metal materials. For cutting 30mm wood or MDF, we recommend the 4.5 kW water-cooled spindle. If you need to cut: 40mm thick wood or MDF, please choose the 5.5 kW water-cooled spindle for a one-pass cut. Higher power allows cutting thicker materials efficiently.
Spindles with 1.5 kW or 2.2 kW are primarily used for engraving but can also cut wood, MDF, and acrylic with multiple passes. Smaller power spindles are best suited for intricate engraving tasks.
(2) The aluminum profile woodworking machine excels in 3D embossment and handling irregular, uneven molds.
(3) This machine's cooling mode is: water-cooled spindle . We can also produce the machine with an air-cooled spindle. When choosing a machine, please specify your preferred cooling method or share your requirements so our engineers can assist you in selecting the appropriate option.
(4) This type of wood CNC router uses genuine Taiwan HIWIN linear guide rails, ensuring high precision, along with TBI ball screws.
(5) We can produce wood CNC routers with 1 spindle and multiple heads (2, 3, 4, 6 heads) or configurations such as 1 spindle with 1 head, 2 spindles with 2 heads, and 3 or 4 spindles.
(5) You might wonder about the efficiency of 1 spindle controlling multiple heads. This means one water/air-cooled spindle can control multiple heads, enhancing engraving and cutting efficiency. On the other hand, 2 spindles with 2 heads mean each spindle controls one head, offering faster working speed and efficiency, albeit at a higher cost than the multi-head configuration.
(6) Our factory can customize the wood CNC router machine according to your requirements , including working size, machine color, and motor size. .... As a professional buyer, kindly share your exact requirements—such as the specific brands of stepper motors and drivers. If you're unsure, just let us know, and we will tailor the production to meet your needs.
2. Machine Features
1)Vacuum & T-slot Combined Table: Ideal for small-scale processing using material holders, eliminating the need for a vacuum pump electricity. For larger tasks, it uses adsorption, making the process simple, convenient, and efficient. :Ideal for small-scale processing using material holders,
eliminating the need for a vacuum pump electricity. For larger tasks, it uses adsorption, making the process simple, convenient, and efficient.
2)Water Cooling Spindle: Offering high precision, long lifespan, stable operation, and easy startup., offering high precision, long lifespan, stable operation, and easy startup.
3) Taiwan Hiwin Linear Square Guide Rail: Featuring a self-lubricating sliding block. It guarantees uniform force in all directions, ensuring the machine's accuracy and strength. ,featuring a self-lubricating sliding block. It guarantees uniform
force in all directions, ensuring the machine's accuracy and strength.
4) Y Axis Utilizes Double-Motor: In-phase drive, ensuring balanced and smooth operation.in-phase drive, ensuring balanced and smooth operation.
5) DSP Controller System with USB Interface: Allowing it to work independently from a computer during operation, making it easy to control., allowing it to work independently from a computer
during operation, making it easy to control.
3. Parameter

Brand	CHANKE
Model	CK-1325 wood cnc router
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0kw/4.5/5.5kw as customers choice
Spindle Rotate(rpm)	6000~24000mm/min
Motor	stepper motor or Servo motor imported from Japan as your choice
Tool Diameter(mm)	Ø3.175,Ø4,Ø6/8mm, Ø12.7mm
Machine Structure	Thicker Welded Steel tube Structure for 8mm thickness
Transmission System	X,Y Axis: Helical Rack and Pinion Drive Z Axis: Taiwan TBI ball Screw
X,Y,Z Rail	Taiwan HIWIN square rail
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	USB or PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
software	CAD/CAM,Artcam,Castmate,Ug,Wentai,Type3. UCancamV8
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1680Kg

4. Applicable Materials
1)Furniture: Including plates, office furniture, doors, and cabinets.: including plates, office furniture, doors, and cabinets.
2)Wood Products: Such as speakers, game cabinets, computer tables, sewing machines, and musical instruments.: such as speakers, game cabinets, computer tables, sewing machines, and musical instruments.
3)Board Processing: Including insulation, plastic chemical components, PCB, car bodies, bowling tracks, ABS, PP, PE, and more.: including insulation, plastic chemical components, PCB, car bodies,
bowling tracks, ABS, PP, PE, and more.
4) Decoration: Materials like Acrylic, PVC, MDF, glass, plastic, and soft metals such as copper and aluminum.: materials like Acrylic, PVC, MDF, glass, plastic, and soft metals such as copper and aluminum.
5. How to Order Our Machine?
Before we recommend the most suitable machine for you, please provide the following details:
1) What materials will you be working on?
2) What is the maximum size of your processing materials? (Length & Width)
3) Do you mainly engrave or cut? If cutting, what is the maximum cutting thickness?
4) Are your materials cylindrical? If YES, what is the maximum diameter?
5) If possible, could you send pictures of your product samples? This will help us understand your needs better.
help us understand your needs better..
6. Trade Items of Machine

MOQ	1 set
Package	Standard Plywood Box
Delivery Terms	FOB, CIF, EXW, Door to Door ect.
Delivery Time	15 working days after receiving payment
Payment Type	T/T, Paypal, Western Union and others
Supply Ability	200 sets/month
Port	Qingdao, China.

7. Our Service
As a factory manufacturer, we ensure the quality of every component is meticulously monitored by our seasoned technicians. We are confident that our product will seamlessly fit into your market. We also offer customized machines tailored to your specific needs. Additionally, our technicians are proficient in English and can directly address your concerns.
8.Guarantee & Service of Machine
Two Years Quality Guarantee: The machine with main parts (excluding the consumables) shall be replaced free of charge if any problem occurs during the ,The machine with main parts (excluding the consumables) shall be replaced free of charge if any problem occurs during the
Extended Warranty Period
Service: (Enjoy lifetime technical support and 24/7 online availability)
Before Sale:
We are always at your service, ready to provide any information you need promptly.
We offer professional and personalized advice tailored to your specific needs, at no cost.
During Sale:
We meticulously manage all production and shipping arrangements. Once everything is
prepared, we ensure you are kept informed about every step of the progress.
After Sale:
1) We supply an English version working manual.
2) Our engineers, who are fluent in English, are available to assist you with any questions or issues during usage and maintenance, either online or over the phone.
3) The machine comes with a one-year warranty. Should you encounter any unintentional damage within this period, we will provide replacement parts free of charge.
4) For any significant issues, our engineers will visit your location to diagnose and fix the problem.
5) Remote control assistance is available if needed.
Spare Parts:
From production in our factory to delivering the goods directly to your port or company, we offer a comprehensive, all-in-one service. With extensive experience in shipping and customs clearance,we devise the most economical delivery plan to ensure quick lead times. Whether your
order meets our MOQ or is significantly larger, we treat each customer with the utmost importance.

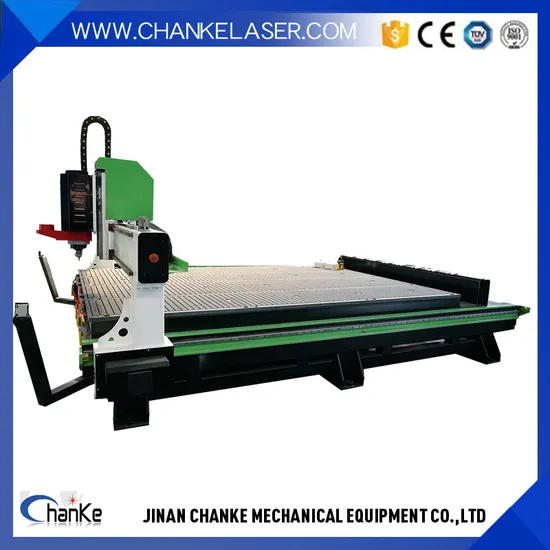

Whole Machine Photo
Here are the working videos on YouTube:
https://chankelaser.en.made-in-china.com (CNC router cutting stainless steel)
https://chankelaser.en.made-in-china.com (CNC router engraving on brass - 3D embossment work)
https://chankelaser.en.made-in-china.com (1300x2500mm cutting 50MM MDF)
Customers:
Our esteemed Saudi Arabian client and his son visited us and placed an order for two machines: one 260w metal and nonmetal laser cutting machine and one 7.5kw air cooling spindle CNC router with a spraying function for cutting steel and wood.
Packing:
All CNC routers are securely packed with standard inner plastic wrap and steel structure, and an outer plywood case. The inner package ensures all small parts are securely fastened, and the plywood case provides robust protection for your valuable equipment. It is strong enough to ensure the laser machine remains safe and undamaged during shipping.
The unmatched benefits of plywood case packaging include:
1. Superior Compressive Strength: Plywood cases offer enhanced compressive strength and bearing capacity, making them ideal for packing heavy goods securely.
2. Large Board Area: The expansive board area and solid structure streamline the packaging process, enhancing leakproof and waterproof capabilities.
3. Fumigation-Free Importing: When importing, plywood cases are fumigation-free, simplifying the process.
