Basic Info.
Making Method of Parison
Stretch Blow
Computerized
Computerized
Machine Type
Blow Molding Machine
High Air Compressor
2.4m3/3.0MPa
Low Air Compressor
2.0m3/1.0MPa
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
Wooden Case
Origin
Taizhou, Zhejiang, China
Production Capacity
100 Sets/Year
Product Description
Product Description

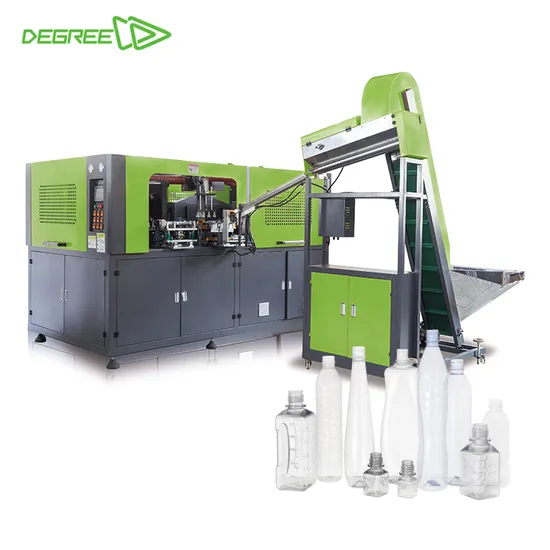

What is a Bottle Blow Molding Machine?
The bottle blow molding machine is a sophisticated two-step stretch-type bottle manufacturing plant designed for efficiency and precision.
This remarkable bottle blow molding machine is expertly crafted to produce a variety of plastic bottles using premium PET raw material, ensuring unmatched quality and durability.
Our bottle blow molding machine is a versatile powerhouse, widely employed to craft an array of carbonated soft drink bottles with precision and speed.
It seamlessly produces an extensive range of containers, including mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth jars, and hot-filling juice bottles, catering to diverse industry needs.
Detailed Photos
Product Parameters
| ITEMS | MODEL DEG-A4-2L |
| Number of cavity | 4 |
| Max.volume | 2L |
| Neck size | 18-38MM |
| Max.bottle dia | 103MM |
| Max.bottle height | 340MM |
| Theoretical output | 4500-5500BPH |
| Rated power | 46KW |
| Power consumption | 20-25KW |
| Main machine size | 4.5*1.9*2.1 m |
| Preform loader size | 1.9*1.2*2.4 m |
| Weight | 5200KGS |
Certifications
Packaging & Shipping
Company Profile
FAQ
Q1 :What kinds of product you supply?A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etcQ2: How to tell your enquiry ?A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.Q3: How to choose suitable machine?A3: Tell us your requirement, and we will advise you.Q4: Do you have technical support after we purchased your machine?A4: - We will provide video technical support,online support.- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
>>
