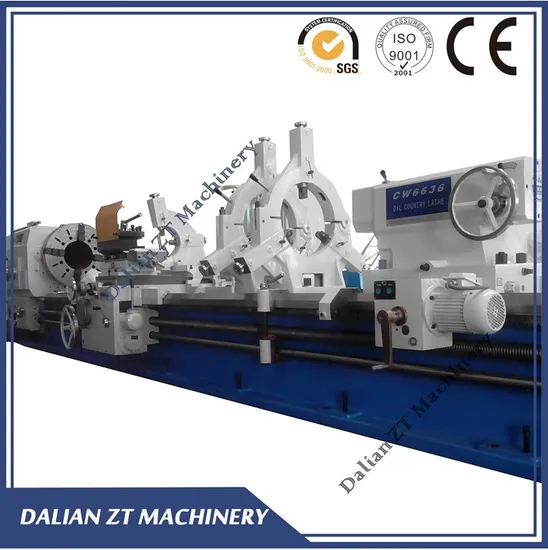

Strong Large Spindle Bore CNC Oil Country Lathe

Product Description

Features:
This series of oil country machine is mainly suitable for turning pipe ends, taper pipe thread, pipe band, pipe sleeve, rod drilling and so on, It has characters of big power, good rigidity,high accuracy and excellent keep performance FANUC OR SIEMENS CNC system has been used. Pulse coder is as a measuring element, longitudinal and cross feed form semi-closed loop control.
Specifications of oil country lathe

Item	CW6628	CW6636	CW6646
Swing over bed	1000mm	1000mm	1250mm
Swing over carriage	710mm	650mm	890mm
Spindle bore	280mm	360mm	460mm
Max. Load between centers	4T	6T	6T
Bed width	600mm	755mm	970mm
Spindle speed	5-435rpm	3.15-315rpm	3.15-315rpm
Spindle motor	AC18.5kW	AC22kW	AC30kW

Standard accessories:
INDENPENDENT FOUR JAWS CHUCK, DIAMETER OF 720 mm, 2 SETS
STEADY REST, RANGE 50 TO 470 mm, 1 SET
FOLLOW REST, RANGE 50 TO 220 mm, 1 SET
TAPER TURNING DEVICE WITH LENGTH 300mm,600 mm, 1 SET
DEAD CENTER, 1 PIECE
LIVING CENTER, 1 SET
COOLANT SYSTEM
WORK LIGHT
SPECIAL TOOLS, OIL GUN & SPANNERS
Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item:
Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.
Exhibitions & Customers' Visiting
FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are 100% new and not used, only made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard. Some machines will

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
