Single Screw Plastic Extruder Xinda Co Kneader Machine

Product Description

The Co-Kneader, a low-shear rotating and reciprocating single-screw extruder is designed for shear and temperature-sensitive compounds. The flights on the screw are interrupted and interact with three rows of stationary kneading pins located in the barrel wall. The interaction between the moving flights and the stationary pins provides dispersive and distributive mixing simultaneously.
Co-Kneader was first invented in 1945 by the famous Switzerland extruder company and has now grown into very mature and advanced compounding technology after years of practice in compounding industries. Co-Kneader is different from traditional single or twin screw extruders because of its unique mechanisms. The spiral of the kneading screw is detached three times at the circumference. In those gaps are the stationary kneading pins fixed inside the kneading case. While the screw is circumrotate, so too does the axis, moving reciprocally.
Layout of Xinda Co Kneader

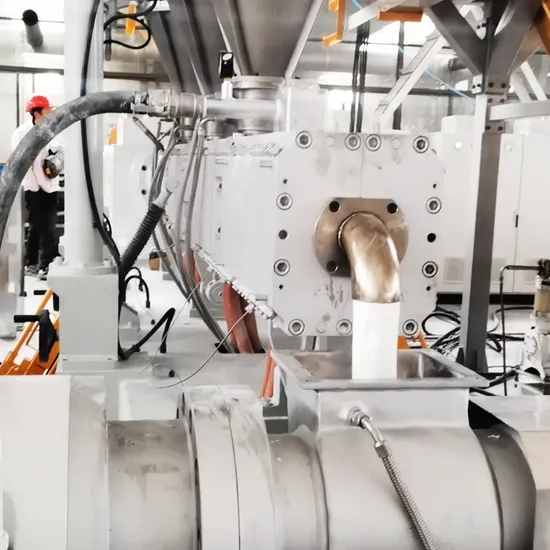

Detailed Photos
Product Description
Co-kneader (plastic compounding extruder) is one kind of continuous kneader and reciprocating single-screw extruder. Fillers or additives (Solid or liquid) can be evenly inducted into the melted polymers. Thus the end-pellets can achieve a high quality. Temperature probe immerses into the melts granting precise temperature control. Welcome to XInda to test our plastic compounding extruder.
Advantages of Co-kneader:
Lower energy input, lower melt temperatures.
Extremely homogenous mixing, no shear spikes, equal treatment of polymer matrix.
High degree of self-wiping and has no dead spot.
Dispersive mixing without destroying delicate fillers.
High volumetric loadings of fillers and additives.
Efficient blending of liquid components.
Broad application for compounding without changing hardware.
Axially opened split barrel guarantees ease of cleaning and fast maintenance.
Replacement parts, such as screws, barrel lining, and pins can be changed individually.
Three Flights SJW (C) Series Model SJW-45(M) SJW-70(M) SJW-100(M) SJW-140(M) SJW-200

Screw Diameter(MM)	45	70	100	140	200
L/D	15-25	15-25	15-25	15-25	20-25
Main Motor Power(KW)	15-30	55-75	90-132	160-220	250-280
Max.Screw Speed(RPM)	500	500	500	500	500
Reference Output: KG/HOUR	10-50	100-200	150-300	600-1000	1000-2000

Four Flights SKW & WKS Series Model SKW-105 SKW-125 SKW-140 WKS-120

Screw Dia.(MM)	105	125	140	120
L/D	15-22	15-22	15-22	9-15
Main Motor Power(KW)	200-280	350-450	550-650	250-280
Max.Screw Speed(RPM)	500	500	500	500
Second-stage Screw dia.(MM)	180	220	280	220
Second-stage L/D	7	7	7	7-8
Second-stage Power(KW)	75	110	132	90-132
Reference Output: kg/h	500-800	800-1500	1600-2000	1800-2500

Applications
PVC Pelletizing Cable & Wire Compounds Color & Filler Masterbatch
PVC Shoe Sole PVC Cable Compounds White MB
PVC Pipe HFFR Cable Compounds Black MB
PVC Sheet XLPE Cable Compounds Filler MB
PVC Flooring Semi-conductive Color MB
PVC Wig PEX Cable Additive MB
Engineering Plastics Rubber & Elastomer Biodegradable Plastics
PA Compounds TPE Compounds PLA
PC Compounds TPU Compounds PLA + Starch
PET Compounds TPO Compounds PBAT
PBT Compounds SEBS Compounds PBAT + Starch
POM Compounds Rubber PBS

Thermosetting Plastics Special Compounds Pharma
BMC Wood Composite Insoluble APl &masking APl bad smell
EMC Magnetic Skin, mucous membrane or wound care films
Melamine Pet Food Localized release formulation
Phenolic Vegan Meat Medical polymer materials
Urea Packaging & Shipping
Products Recommended
Xinda Twin Screw Extruder: Clamshell Barrel The barrel can be opened in minutes. This makes product changeover, maintenance, and research fast and easy.

Xinda Lab Extruder
It is equipped with segmented screws that can be quickly reconfigured to meet your specific needs, Its "clamshell" design makes screw changes and cleanout quick and easy, adding to its versatility.

Pharma Extruder
This technology can be used to produce granules, pellets, immediate-release tablets, controlled-release tablets, and Pellicle. At present, many drugs have been approved for marketing in foreign countries using HME technology.
