Compact Portable Laser Rust Removal Machine - Separable Design for Metal Cleaning

Product Description

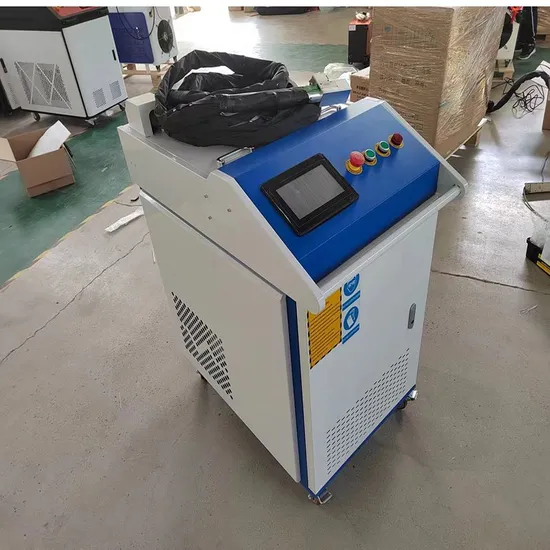

Machine foto


Product Parameters

Parameter	Value
Model	ITE-LC-1000W/1500W/2000W/3000W
Laser Type	Continuous Fiber Laser
Rated Output Power	1000W/1500W/2000W/3000W
Power Adjustment Range	0%~100%
Laser Center Wavelength	1080±5nm
Output Mode	Continuous
Modulation Frequency	50-5KHZ
Power Instability	±1.5%
Fiber Output Interface	QBH
Indication System	Red Light
Fiber Length	15m
Cleaning Gun Cable Length	15m
Cleaning Gun Type	Left and Right Swing Mirror Welding Head
Collimation Focus Distance	60mm
Focusing Focus Distance	400mm/800mm
Cleaning Width	0-300mm
Cleaning Gun Weight	0.8kg
Protection Gas Mode	Coaxial Protection
Focal Distance	400mm/800mm±10mm
Water Flow	2L/min+18L/min
Product Structure	Split-type
Product Dimensions	1085*600mm*1150mm
Product Weight	200kg
Operating Temperature	-10ºC~40ºC
Operating Humidity	<70%
Operating Voltage	Three-phase Five-wire 380VAC,as resquest
Total Power	<13kw

Main Technical Parameters

Main Component	Brief Description
Laser	Continuous fiber laser. Center wavelength 1080±5nm
Transmission Fiber	10m flexible fiber with QBH interface
Swing Cleaning Head	Super lightweight and compact, with left and right swing spot
Control System	Chinese and English operation interface, touchscreen control
Enclosure	Integrated design, with universal walking casters
Chiller	Special chiller for fiber laser

how to choose a suitable power of a laser cleaning machine

Choosing the suitable power of a laser cleaning machine depends on several factors and considerations. Here are some key points to keep in mind when selecting the power of a laser cleaning machine:
1,Cleaning Application: Consider the specific cleaning application you intend to use the laser cleaning machine for. Different materials, surfaces, and contaminants may require different power levels for optimal cleaning. For example, removing heavy rust or thick coatings may require higher power compared to cleaning delicate electronic components.
2,Surface Sensitivity: Evaluate the sensitivity of the surface being cleaned. Some materials or surfaces may be more sensitive to heat or energy, requiring lower power levels to avoid damage. Delicate surfaces may need precise control over power and intensity settings.
3,Cleaning Speed: Determine the desired cleaning speed for your application. Higher power laser cleaning machines can typically achieve faster cleaning speeds. If time is a critical factor, choosing a higher power machine may be beneficial.
4,Budget and Cost Considerations: The power of a laser cleaning machine can affect its cost. Higher power machines often come at a higher price point. Evaluate your budget and cost constraints while considering the necessary power for your cleaning requirements.
5,Versatility and Future Needs: Consider the versatility of the laser cleaning machine. If you anticipate the need for cleaning different types of surfaces or expanding your cleaning applications in the future, it may be advantageous to select a laser cleaning machine with adjustable power settings or the ability to upgrade power levels.
6,Consult with Experts: Seek advice from laser cleaning machine manufacturers, distributors, or industry experts who can provide guidance based on your specific cleaning needs. They can help assess the appropriate power requirements and recommend suitable machines for your application.
It's important to note that the power alone is not the sole determining factor for effective cleaning. Other factors such as beam quality, pulse duration, spot size, and control options also play a significant role in achieving optimal cleaning results. Therefore, it's essential to consider a holistic approach and consult with experts to ensure the laser cleaning machine meets your specific cleaning requirements.

---
