US$30.00-150.00
|
10 Pieces
(MOQ)
|
Basic Info.
Application
Park, Square, Factory, Garden
Certification
CCC, CE, CQC, EMC, LVD
Operating Voltage
110-130V
Product Capacity
1000 Sets/Month
Fixture Finish
Black / Grey / Silver
Accessory
Surface Mounting Bracket
Transport Package
125*125*235mm
Specification
125*125*235MM
Production Capacity
10000pieces/Month

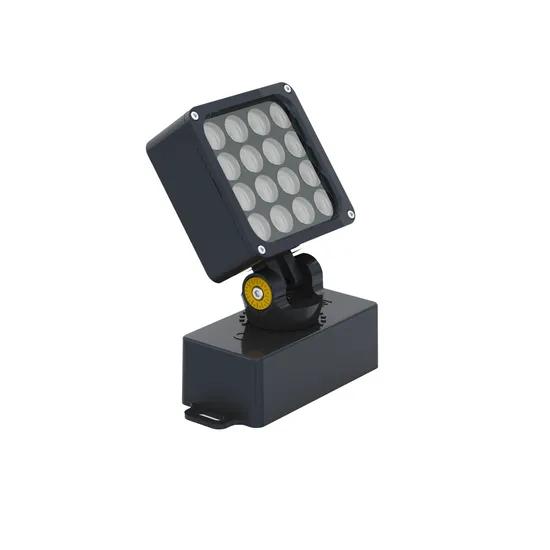

Product Description
Our Advantages Extruded aluminum and die-cast aluminum housing with high corrosion resistance.
DuPont outdoor electrostatic powder coating.
4mm thickness tempered glass. Fire-resistant Silicon seal gasket.
2.0W/(m·k)MCPCB.
Waterproof IP65 LED driver built-in
Various beam angle options
Product Description
ELECTRICAL
|
|
|
| PHYSICAL
|
|
|
Rated Power
|
| 18W Max.
|
| Dimension(mm)
|
| 125*125*235mm
|
LED brand
|
| cree/ Epistar
|
| Main Material
|
| Aluminum,glass
|
CRI
|
| >80
|
| Fixture Finish
|
| black / grey / silver
|
Color temperature
|
| 2700K, 3000K, 4000K, 5000K,6500K,RGBW
|
| OPTICS
|
|
|
Lumen output
|
| 80lm/w@ 4000K
|
| Beam Angle
|
| 5° 8° 10° 25° 30° 45° 60°
|
Life maintenance
|
| >50,000 hours
|
| Reflector/Diffuser
|
| tempered glass
|
Input voltage
|
| 24V DC / 100-110V AC / 220-240V AC
|
| SAFETY &PROTECTION
|
Power factor
|
| >0.9
|
| Ingress Protection
|
| IP66 IK08
|
Driver option
|
| Meanwell / MOSO / DONE
|
| Operating Temperature
|
| '-10ºC~50ºC
|
Switch/Protocol
|
| ON-OFF / PWM / DMX512 / DALI
|
| Accessory
|
| surface mounting bracket
|
Wire connection
|
| 1x15cm cable without connectors
|
| Warranty
|
| 3 years
|
Product Parameters
ELECTRICAL
|
| FW1516
|
| PHYSICAL
|
|
|
Rated Power
|
| 30W Max.
|
| Dimension(mm)
|
| 150*150*260mm
|
LED brand
|
| cree/ Epistar
|
| Main Material
|
| Aluminum,glass
|
CRI
|
| >80
|
| Fixture Finish
|
| black / grey / silver
|
Color temperature
|
| 2700K, 3000K, 4000K, 5000K,6500K,RGBW
|
| OPTICS
|
|
|
Lumen output
|
| 80lm/w@ 4000K
|
| Beam Angle
|
| 5° 8° 10° 25° 30° 45° 60°
|
Life maintenance
|
| >50,000 hours
|
| Reflector/Diffuser
|
| tempered glass
|
Input voltage
|
| 24V DC / 100-110V AC / 220-240V AC
|
| SAFETY &PROTECTION
|
Power factor
|
| >0.9
|
| Ingress Protection
|
| IP66 IK08
|
Driver option
|
| Meanwell / MOSO / DONE
|
| Operating Temperature
|
| '-10ºC~50ºC
|
Switch/Protocol
|
| ON-OFF / PWM / DMX512 / DALI
|
| Accessory
|
| surface mounting bracket
|
Wire connection
|
| 1x15cm cable without connectors
|
| Warranty
|
| 3 years
|
ELECTRICAL
|
| FW1519
|
| PHYSICAL
|
|
|
Rated Power
|
| 30W Max.
|
| Dimension(mm)
|
| 150*150*260mm
|
LED brand
|
| cree/ Epistar
|
| Main Material
|
| Aluminum,glass
|
CRI
|
| >80
|
| Fixture Finish
|
| black / grey / silver
|
Color temperature
|
| 2700K, 3000K, 4000K, 5000K,6500K,RGBW
|
| OPTICS
|
|
|
Lumen output
|
| 80lm/w@ 4000K
|
| Beam Angle
|
| 5° 8° 10° 25° 30° 45° 60°
|
Life maintenance
|
| >50,000 hours
|
| Reflector/Diffuser
|
| tempered glass
|
Input voltage
|
| 24V DC / 100-110V AC / 220-240V AC
|
| SAFETY &PROTECTION
|
Power factor
|
| >0.9
|
| Ingress Protection
|
| IP66 IK08
|
Driver option
|
| Meanwell / MOSO / DONE
|
| Operating Temperature
|
| '-10ºC~50ºC
|
Switch/Protocol
|
| ON-OFF / PWM / DMX512 / DALI
|
| Accessory
|
| surface mounting bracket
|
Wire connection
|
| 1x15cm cable without connectors
|
| Warranty
|
| 3 years
|
ELECTRICAL
|
| FW0512M
|
| PHYSICAL
|
|
|
Rated Power
|
| 100W Max.
|
| Dimension(mm)
|
| 510*350*335mm
|
LED brand
|
| cree / Epistar
|
| Main Material
|
| Aluminum,glass
|
CRI
|
| >80
|
| Fixture Finish
|
| black / grey / silver
|
Color temperature
|
| 2700K, 3000K, 4000K, 5000K,6500K,RGBW
|
| OPTICS
|
|
|
Lumen output
|
| 80lm/w@ 4000K
|
| Beam Angle
|
| 5° 8° 10° 25° 30° 45° 60°
|
Life maintenance
|
| >50,000 hours
|
| Reflector/Diffuser
|
| tempered glass
|
Input voltage
|
| 24V DC / 100-110V AC / 220-240V AC
|
| SAFETY &PROTECTION
|
Power factor
|
| >0.9
|
| Ingress Protection
|
| IP66 IK08
|
Driver option
|
| Meanwell / MOSO / DONE
|
| Operating Temperature
|
| -10ºC~50ºC
|
Switch/Protocol
|
| ON-OFF / PWM / DMX512 / DALI
|
| Accessory
|
| surface mounting bracket
|
Wire connection
|
| 1x15cm cable without connectors
|
| Warranty
|
| 3 years
|
Installation Instructions
