Shotcrete Machine Mobile Wet Spray Manipulator Cart - Lanhi Lhp40f

Product Description

Product Description

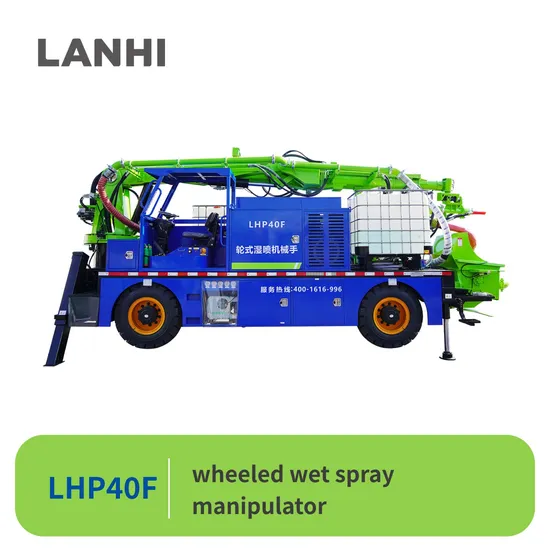

The LHP40F The LHP40F wheeled wet spray manipulator represents the pinnacle of modern engineering, blending the best domestic and international wet spray machine technologies into one state-of-the-art device. With an optimized structure, this machine boasts a remarkably low failure rate, high accessory and consumable versatility, and cost-effective operation. Its unparalleled features include high spray capacity, robust pipe blockage resistance, minimal rebound, and consistent, reliable performance, all of which significantly enhance construction efficiency while conserving concrete.
Boasting a maximum spray volume of up to 40m³/h, this equipment delivers exceptional spraying efficiency and features pipes designed to resist blockage.
The diesel-electric dual power system ensures seamless and rapid construction progress, keeping your projects on schedule.
Designed with a small footprint for excellent flexibility, the machine easily navigates in and out of construction sites with ease.
High versatility in accessories and consumables translates to significantly lower operating costs, maximizing your investment.
Equipped with dual quick-setting agent tanks, each with a capacity of 1.5 cubic meters, this machine is perfectly suited for large section construction projects.
Product Parameters

Transport dimensions (L × W × H)	8340×2700×3250mm
Total weight	16t
Engine power	103kW
Installed electrical power	75kW
Operating mode	Electric construction + diesel-powered emergency
Control mode	Wireless remote control
Operating voltage	380V
Operating range (width × height)	26×15m
Chassis form	Operating chassis
Driving mode	One-way driving
Driving and steering methods	Four-wheel drive, front-wheel steering
Minimum ground clearance	420mm
Maximum grade	29%
Turning radius	10m (two wheels)
Maximum speed	15km/h
Approach angle/departure angle	16°/16°
Maximum spraying volume	40m³/h
Maximum particle size for spray aggregate	25mm
Hopper capacity	0.3m³
Capacity of quick-setting agent tank	1.5m³
Form of quick-setting agent pump	Squeeze pump
Discharge volume	/
Discharge pressure	/

Detailed Photos

---
