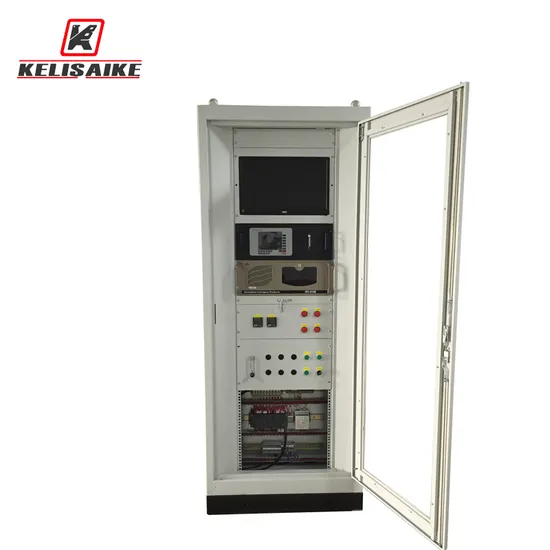

Continuous Emission Monitoring System Cems for Nox, So2, Co, O2 UV Gas Analyzer

Product Description

Continuous Emission Monitoring System CEMS for Nox, So2, Co, O2 UV Gas Analyzer
The analyzer based on UV absorption spectroscopy and chemometric algorithms to measure SO2, NOx, O2, NH3, Cl2, O3, H2S and other gases concentration, with high accuracy, high reliability, fast response time, wide application and other characteristics, the indicators have reached or exceeded similar products, it can be widely used in environmental online monitoring, industrial control, security monitoring and other occasions.
>>>Key Features Full spectrum measurement and DOAS (Differential Optical Absorption Spectroscopy) algorithm, excelling in accuracy, repeatability and anti-interference with moisture, dust.
Modular design and no moving parts, higher reliability and easier maintenance.
Pulse Xenon Lamp used as light source with over 10-year lifetime.
The adoption of diode array sensor enables instant spectrum acquisition and rapid response.
>>> Features and Benefits
1. Analyzer uses the following optical technology platform to get the UV absorption spectrum, the technology platform consists of light source, gas chamber, fiber optics and spectroscopy (including the diaphragm, holographic gratings, linear array detector) and other optical components.
2. UV-visible light emitted by the optical window into the gas chamber, is absorbed by the sample gas flowing through the measured gas chamber, carrying the tested sample gas absorbs light through the lens after gathering information coupled into optical fiber through the optical fiber transmission into the spectrometer splitting, sampling, to obtain the absorption spectrum of the gas.
3. Use DOAS technology spectrum analysis, can analyze the concentration of the gas in the relevant component. >>> Measuring principle 1) The light source emits ultraviolet beam which transfers to gas cell through optical fiber.
2) After absorption by measuring gas, the light beam transfers through optical fiber to spectrometer.
3) Being dispersed through the grating, and converted into electric signal by the array sensor, a continuous absorption spectrum of measuring gas is thereafter obtained.
>>>Technology Comparison

Item	UV Hot-Wet Method	NDIR
Spectral Range	Complete and continuous absorption spectra obtained through holographic grating and diode array detection	Non Dispersive, characteristic absorption spectra obtained through band-pass filter
Linear Response	High wavelength resolution secures linear response	band-pass filtration compromises linear response
SO2 Loss	Hot-wet prohibits SO2 dissolution	Condensation inevitably causes SO2 loss
Sampling System	Heat tracing. Requests only dust filtration, simple and no corrosive	Cold-dry. Requests dust filtration, condensation, water removal and corrosion proof
Zero Calibration Period	Long (DOAS algorithm)	Short
Anti-Interference	The combination of complete & continuous absorption spectra, high wavelength resolution, DAOS algorithm erases interference from dust, moisture and background gases	Vulnerable to moisture interference
Gas Cell	Connected by optical fiber, easy to replace and low maintenance cost	Complex to replace and maintenance
Maintenance
Reliability	No moving parts	Moving parts existed

>>>Technical Specifications

SO2, NOx Analyzer
Technical Principle	UV-DOAS
Installation type	Hot-wet Extractive
Measurement Range	0~200ppm, 0~1000ppm, 0~3000ppm
Zero Drift	≤ ±2%F.S.
Span Drift	≤ ±2%F.S.
Accuracy	≤ ±1%
Response Time(T90)	≤ 60s
Linearity	≤ ±1%F.S.
O2 Analyzer
Technical Principle	Zirconia/Electrochemical
Measurement Range	0~25%
Response Time(T90)	≤ 60s
Linearity	≤ ±2%F.S.
CO, CO2 Analyzer
Technical Principle	NDIR
Installation type	Extractive
CO Measurement Range	0~1000 ppm
CO2 Measurement Range	0~20%
Zero Drift	≤ ±2%F.S.
Span Drift	≤ ±2%F.S.
Accuracy	≤ ±1%
Response Time(T90)	≤ 60s
Linearity	≤ ±2%F.S.

Technical Data for UV gas analyzer

Project	Indicators
SO2 Detection range	Min:0-50ppm,Max:0-100%,
NO Detection range	Min:0-50ppm,Max:0-100%,
O2 Detection range	0-25%, Electrochemical or zirconia
Linearity error	≤±1%F.S.
Repeatability	≤1%
Zero drift	≤±1%F.S./ week
Span drift	≤±1%F.S./week
Ambient temperature	5ºC~45ºC
Response time(T90)	<60s
Size	19" *3U*320mm
Analog interface	3-way 4-20mA output,2-way 4-20mA output
Data interface	4-way switch input; 8-way relay output
Communication Interface	1-way RS-232,1-way RS-485(Supports Mod-bus protocol)
Power	220VAC/50Hz 100W
Protection grade	IP42
Sample gas input and output interface	Ø6 Tube Fittings

>>> OEM
Customize producta are also available,pls feel free to contact me for more detailes.
>>> Our Services
1.The inquiry and question will be replied within12hours
2.High quality with competitive price
3.Good after sales service
4.Accept OEM
5.One of the most professional safety equipment manufacture with a very good and trained team >>> FAQ
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before place an qty order.
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on -line, please have a detailed looking and choose the interested models in our site. Or you can send email to us.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
>>>COMPANY VIEW Nanjing KELISAIKE company is one of the largest safety equipment manufactures, possesing the most complete production range and specifications in the safety equipment industry of mainland China. Nanjing KELISAIKE was founded in 2004, including three subsidiaries in Beijing, Xi'an and Xinjiang, and more than 30 domestic sales service centers, with total registered capital of 5.16 million Yuan.
We are the leader enterprise of the science and technology, persisting in creating core competencies by the core technology. In the company, there is one professional and technical talent team who masters core technology, including more than 10 senior technicans and masters.
Standard products and services cover the portable gas detector, fixed gas transmitter, wall-mounted gas detector, gas detector control unit, air breathing apparatus etc. Also Nanjing KELISAIKE is an experienced factory for OEM service, providing professional design and construction of the customize products. The products are widely used in fields of petroleum, chemical, gas transmission and distribution, warehousing, municipal gas, fire fighting, environmental protection, metallurgy, pharmacy, energy and power industry.

---
