Plastic Machine PVC Conical Twin Screw Extruder for Pipe Profile Sheet Extrusion

US$21,000.00-21,500.00 1 Set (MOQ)

Basic Info.

Model NO.

SJSZ51/105 55/113 65/132 80/156 92/188

Type

Pipe Profile Sheet Extruder

Plastic Processed

PVC

Product Type

Granulating Extruder

Feeding Mode

One Feed

Assembly Structure

Integral Type Extruder

Screw

Twin-Screw

Engagement System

Full Intermeshing

Screw Channel Structure

Deep Screw

Exhaust

Automation

Automatic

Computerized

Name

Plastic Extruder

Gearbox

High Torque Intergrated Gearbox

Screw Barrel

Bimetalic 65/132

Motor Power

37kw

Motor Brand

Siemens Origional

Capacity

300kg/H

Inverter

ABB

Main Electrical Parts

Siemens

After Sale Service

Engineer Overseas Service

Delivery Date

45 Working Days

Ratitional Speed of Screw

1-38rpm

Main Motor Power

37kw

Barrel Heating Power

24kw

Motor

Siemens, Weg

Package

Wooden Box, Bubble Film, Wrapping Film

Transport Package

Wood Base

Specification

SGS CE

Trademark

YUREFON

Origin

Jiangsu China

HS Code

84772090

Production Capacity

300sets/Year

Packaging & Delivery

Package Size

390.00cm * 150.00cm * 140.00cm

Package Gross Weight

2500.000kg

Product Description

Product Description
Plastic PVC Conical Twin Screw Extruder for Pipe Profile sheet Extrusion
Application Area:
The Twin Screw Extruder are mainly used for the processing of the soft/hard PVC pipe, PVC foaming board, PVC sheet, PVC Profile, PVC Trunk, PVC Roof tile, PVC Pelletizing and other polyolefin products, especially the direct processing of the plastic/powder materials.
Twin Screw Extruder is applicant for PVC powder material, with different mould and downstream equipment; the plastic extruder can produce pipe, profile, plate&sheet, and pelletizing. The extruder features in good plastic extrusion, good plasticization, even melting, high output capacity, wide application and reliable stability, specially designed gearbox and distributor and reinforced thrust bearing realize large transmission torque and long operation time. Electrical control system: Siemens PLC/PCC auto control system or RKC temperature control, and ABB Invert/transducer, Siemens contactor, and several alarm system
Product Parameters
Detailed parameter of each model:

conical twin screw extruder
Specification/Model	SJSZ45/90	SJSZ51/105	SJSZ65/132	SJSZ80/156	SJSZ92/188
Screw diameter	45/90	51/105	65/132	80/156	92/188
Ratitional speed of screw	1-45rpm	1-45.5rpm	1-38rpm	1-36.9rpm	1-34.5rpm
Main motor power	15kw	22kw	37kw	55kw	110kw
Barrel heating power	9.6kw	11.5kw	24kw	36kw	88kw
Production capacity	70kg/h	120kg/h	250kg/h	360kg/h	1000kg/h
Net weight	2500kg	3000kg	4000kg	5000kg	5500kg

Detailed Photos

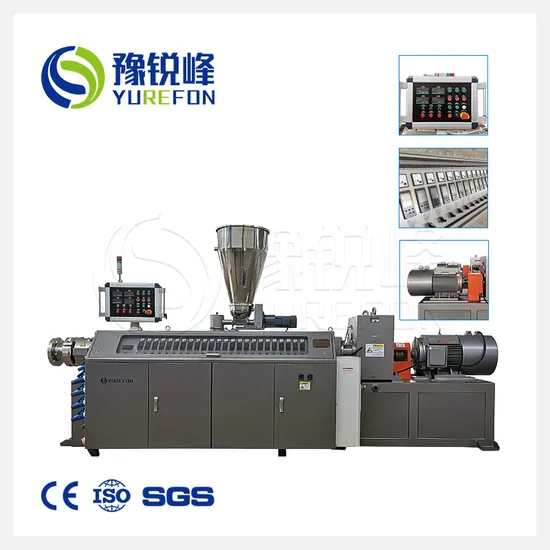

machine detailed picture:
Sample product by this extruder
Company Profile

If you want to know more about the machine, pls contact us.
