Salvador Hot Selling Spare Parts PVC True Union Transparent Y Filter

Product Description

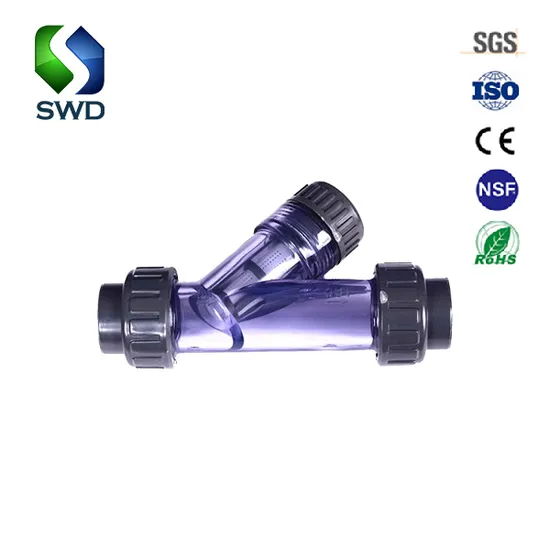

Salvador 150 Psi Spare Parts PVC True Union Transparent Y Filter
DESCRIPTION
1) Material: PVC
2) Size:1/2''-4''; 20mm-110mm; DN15-DN100
3) Standard: ANSI,DIN,JIS,CNS
4) Joint End: Socket, Threaded(NPT,PT,BSPF)
5) Working Pressure:150 PSI
6) Operating Temperature:UPVC(5~55ºC); CPVC&PPH(5~90ºC)
MATERIAL OF ACCESSORIES

No.	Item	Material	Qty	Unit
1	End Connector	UPVC/CPVC/PVC/PPH	2	pcs
2	Union Nut	UPVC/CPVC/PVC/PPH	2	pcs
3/6/7	O-ring	EPDM	4	pcs
4	Body	PVC	1	pcs
5	Filter Net	PP	1	pcs
8	Cock	UPVC/CPVC/PPH	1	pcs

Nom Size	d	d1				d2				L	L1	L2	H
		ANSI	DIN	JIS	CNS	ANSI	DIN	JIS	CNS
DN15(1/2")	15	21.4	20.25	22.3	22.4	21.25	20.05	21.85	21.9	174	22.3	110	55
DN20(3/4")	20	26.75	25.25	26.3	26.4	26.58	25.05	25.85	25.9	184	26	125	66
DN25(1")	25	33.52	32.25	32.33	34.5	33.28	32.05	31.85	33.9	202	29	138	75
DN32(1-1/4")	32	42.28	40.25	38.43	42.5	42.05	10.04	37.85	41.9	233	32.5	149	82
DN40(1-1/2")	40	48.4	50.25	48.46	48.8	48.12	50.05	47.75	47.9	276	35.5	189	105
DN50(2")	50	60.45	63.25	60.6	60.6	60.18	63.05	59.75	59.9	311	38.5	222	135
DN65(2-1/2")	63	73.3	75.25	76.7	76.7	72.85	75.05	75.87	75.9	410	64.5	268	168
DN80(3")	75	89.25	90.35	89.6	89.7	88.7	90.05	88.83	88.9	485	70	330	220
DN100(4")	90	114.6	110.35	114.7	115	114.1	110.05	113.98	113.8	615	84	420	300

DESIGN ADVANTAGE

1. Extra-large diameter shaft is reinforced by additional resin and eliminates stem breaks.
2. Concentric machined ball.
3. Union ends for ease of piping and removal.
4. Machined end connector ensure the precision of size.
5. Stainless insert of shaft are more durable and easy to connect with actuator directly.
6. 100 % pressure tested at our factory
7. Other materials are available (MOQ APPLY)
APPLICATION
1. All kinds of corrosive materials in chemical and petrochemical production, such as water, ammonia, oil, hydrocarbons, etc.
2. Corrosive materials in chemical raw products, such as caustic soda, soda ash, concentrated sulfuric acid, carbonic acid, acetic acid, etc.
3, Cold medium and low temperature materials, such as: liquid methane, liquid ammonia, liquid oxygen and various refrigerants.
4, Light industrial food, pharmaceutical production materials with hygienic requirements, such as: beer, beverages, dairy products, grain and medical supplies.
Other Hot Salve Products
Meet us in Exhibition
FAQ: (Frequently Asked Questions)
1. What is your MOQ?
Our MOQ is usually 5 CTNS.
2. What is your delievery time?
Our delievery is about 25-30days.
3. What is your payment terms?
We accept T/T, 100% L/C, or West Union and so on.
4. Could you provide free samples?
Usually, we offer free samples, customers bear freight cost.
5. Why choose us?
Firstly, comparing with many factories, our prices are more competitive.
Secondly, We 100% test working pressure for ALL our products.
Finally, After- Services will be highly satisfied. Any problems and feedbacks will be responded efficiently.

Company introduction
SWD PLASTIC (Salvador Industrial Co., Ltd) is a leading and professional manufacturer and exporter for UPVC, CPVC, PPH, PVDF pipes, valves and fittings in China. We stick to the principle of " Quality First, Service First, Continuous Improvement and Innovation to Meet the Customers", and the quality management objective of " Zero Defect, Zero Complaints".
SWD Products are widely used in Agricultural Irrigation, Wastewater Treatment, Aquaculture, Pharmaceutical Industry, Electroplating, Papermaking Industry...
Most of our products confirm to ANSI, DIN, BS, JIS & TIS standard and have been already sold to United States, Canada, Mexico, Chile, Colombia, Peru, Russia, Saudi Arabia, UAE, Iran, Iraq, Thailand, Philippines, Indonesia, Malaysia etc. With very good reputation!

---
