Construction Machinery Hydraulic Crawler Excavator

Product Description

Product Description

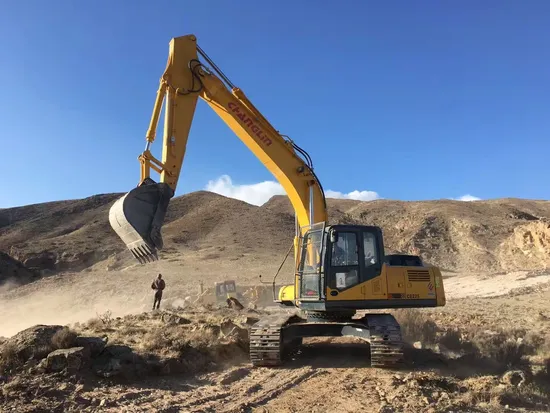

CHANGLIN ZG220 Excavator Sinomach-Hi International Equipment Co., Ltd. presents the CHANGLIN ZG220 Excavator, designed for top performance and efficiency in various construction applications.
Equipped with a top engine for strong power, high efficiency, and energy-saving capabilities Advanced negative flow hydraulic system for comfortable operation and high efficiency Four power modes for different working conditions Stepper motor throttle control to reduce fuel consumption Full 3D modeling and finite element analysis for structural reliability Key Features:
High load resistance and horsepower output Low fuel consumption for cost savings Reinforced side beams and middle frames for durability Intelligent electronic monitoring system for real-time diagnostics LC-type reinforced track for safety and stability Experience the CHANGLIN ZG220 Excavator's reliability and performance in building construction, mining engineering, water conservancy projects, and more.
Product Parameters

	ITEM
Dimensions	Operating weight	Kg	22000
	Rated bucket capacity	m3	1.1
	Overall length	mm	9520
	Overall width(600mm track shoe)	mm	2800
	Overall height	mm	3030
	Trunable width	mm	2700
	Cabin height	mm	2958
	Groundclearance of counterweight	mm	1025
	Engine cover height	mm	2338
	Min. ground clearance	mm	470
	Tail length	mm	2800
	Turning radius of turnable	mm	2800
	Wheel base of track shoe	mm	3370
	Chassis length	mm	4160
	Chassis width	mm	2800
	Track shoe gauge	mm	2200
	Standard track shoe width	mm	600
Performance	Max. traction	KN	204
	Travelling speed (H/L)	Km/hr	5.8/3.3
	Swing speed	rpm	13.9
	Gradeability	Degree(%)	35(70%)
	Ground pressure	Kgf/cm2	0.47
Working Range	Maximum digging radius	mm	9953
	Ground maximum digging radius	mm	9794
	Maximum digging depth	mm	6690
	Ground maximum digging depth	mm	6505
	Maximum vertical digging depth	mm	6104
	Maximum digging height	mm	9642
	Maximum dumping height	mm	6813
	Min. front turning radius	mm	3560
	Bucket digging force	kN	137
	Stick digging force	kN	102
Engine	Model		6B5.9-C150
	Type		6-cylinder in-line, four-stroke turbocharger
	Emission		Tier II
	Displacement	L	5.883
	Rated power		112KW(150PS)@1950rpm
	Max. torque	N.m	614N.m@1500rpm

Company Profile
Our Advantages
After Sales Service
Packaging & Shipping
FAQ
Welcome to Sinomach-Hi International Equipment Co., Ltd. Q1: Are you the original manufacturer?
A: Yes, we, Sinomach-Hi International Equipment Co., Ltd., are an official leading manufacturer in construction machinery. We established joint ventures in the 1990s.
Q2: What kind of payment terms can be accepted?
A: Payment methods accepted include L/C, T/T, D/A, D/P, and Western Union.
Q3: Which Incoterms 2022 can we work with?
A: FOB, CFR, and CIF are the usual trade terms we operate under.
Q4: What is the delivery time?
A: Delivery typically takes 7-30 days after receiving the deposit.
Q5: What is the warranty time?
A: The warranty period is 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available for your machinery?
A: Our machinery is certified with CE, ISO, EAC, EPA (USA), and CCC.
Q7: Do you accept OEM or ODM?
A: We provide OEM and ODM manufacturing services, allowing for product customization based on special working device, color, and brand requirements.
Q8: Can you provide online technical services?
A: Yes, our digital service team offers online technical support through video shooting and remote real-time video links.

---
