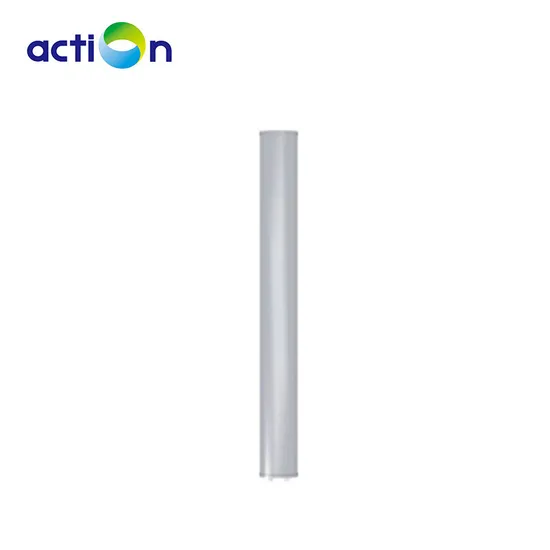

Bts Directional Panel Antenna (790-960MHz)

Product Description

Item Name	Specification
Frequency Range (MHz)	790-960
Gain(dBi)	17±0.5
Horizontal Beam Width(3dB)(°)	65±6
Vertical Beam Width(3dB)(°)	9±1
Electrical Downtilt(°)	0/6
VSWR	≤1.4:1
Isolation between Ports(dB)	≥30
Cross Polarization Ratio(dB)	≥15;±60°≥10
Upper Sidelobe Suppression(dB)	≤-16
Null-FilK(dB)	≤23
Front to Back Ratio(dB)	≥25
Polarization	±45°
Input Maximum CW Power(W)	500
PIMD 3th	≤-150dBc(@20W)
Impedance(Ω)	50
Input Connector	7/16DIN female
Dimensions of Antenna(mm)	2040×287×132
Dimensions of Package(mm)	2385×370×235
Weight of Antenna(kg)	13.5
Weight of Mounting Kits(kg)	5.9
Install Position Adjustment(°)	0~10
Temperature(ºC)	-40~+60
Max Wind Speed (m/s)	55
Radome Material	Plastic or FRP
Diameter of Installation Pole( mm)	Φ80~Φ114

Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM / ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4. Delivery & Shipment Date:
3-30 days
Q5. Customized Frequency:
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
Q6. Output Power & Coverage Areas:
20dBm: 500-1500m²
23dBm: 1500-2500m²
25dBm: 2500-4000m²
27dBm: 3000-5000m²
30dBm: 5000-8000m²
Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.

---
